Here is a 1985 chevy sprint 2dr 5spd
I'm just removing THE A/C UNIT
( No Heater components)
and making a list of what needs to be removed (not in order)
.

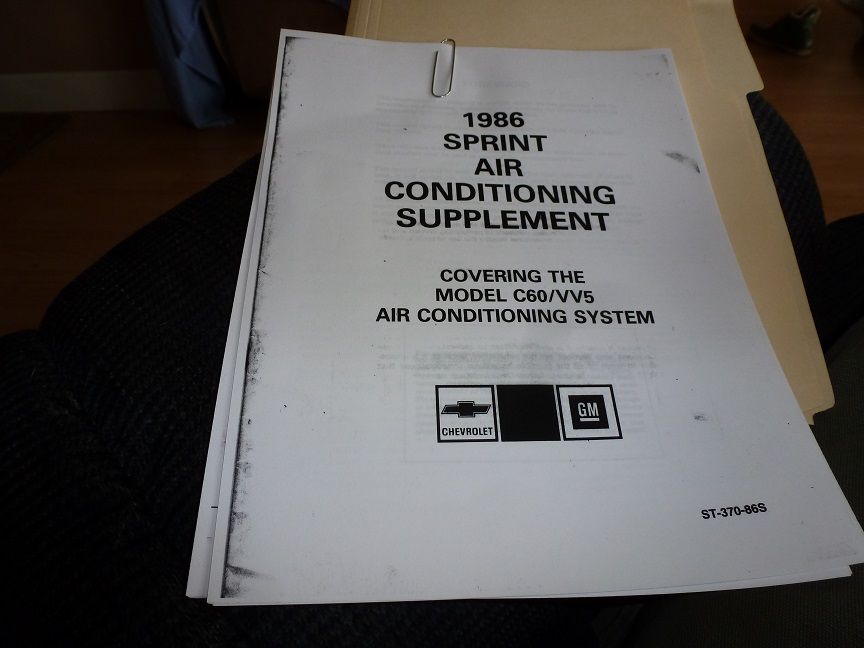

A/C Factory manual scan
.
viewtopic.php?f=31&t=47048
.

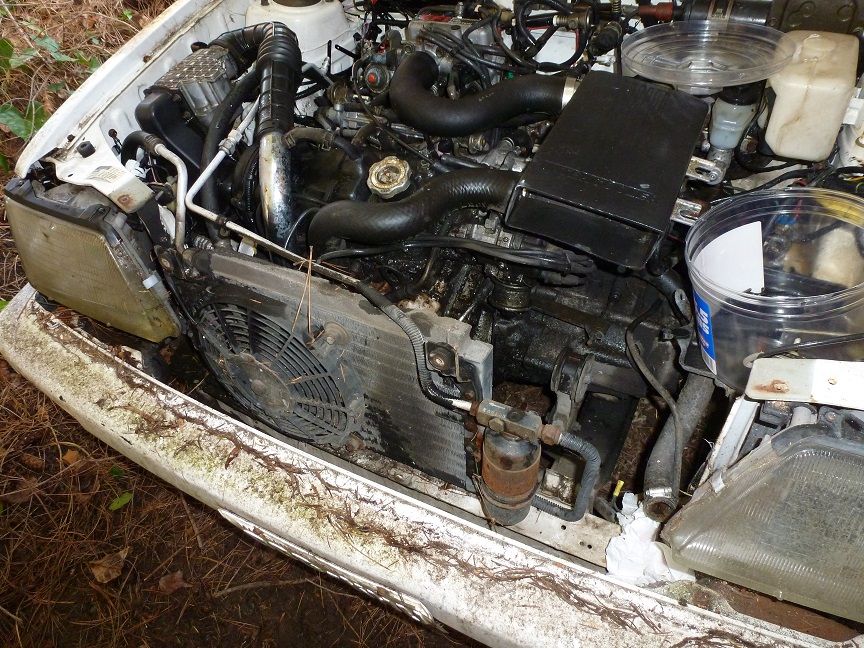

Condensor w fan
Compresor with brackets
Accumulator w High/low press switches
Clutch relay and fuse (located firewall drvr side)

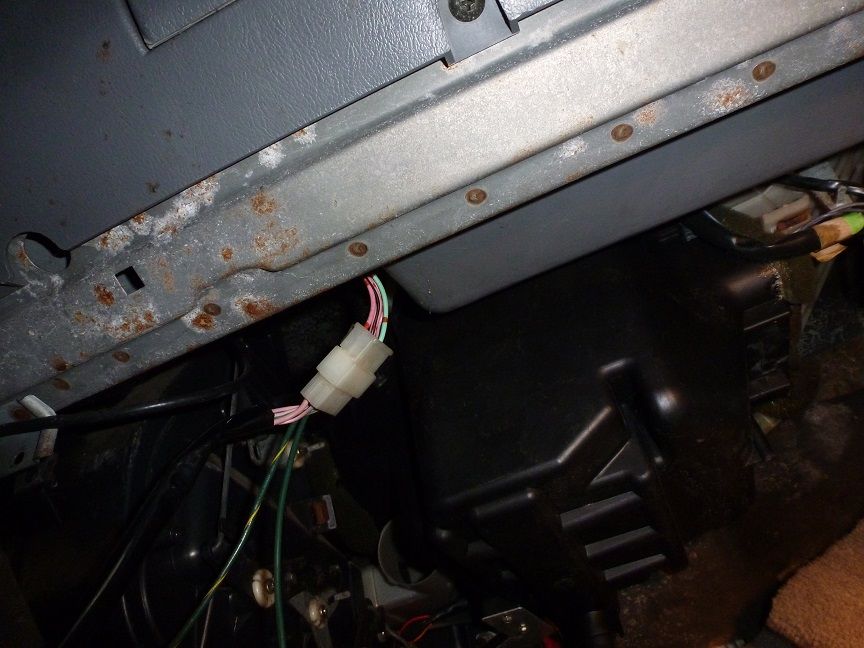

Thermo switch (under dash Pass side)
Engine temp sensor
Switch ( on dash frnt)
Evaporator and box with thermo switch
.
**A/C works on LOW Heater Fan setting only ..??
.
.

.

.

.

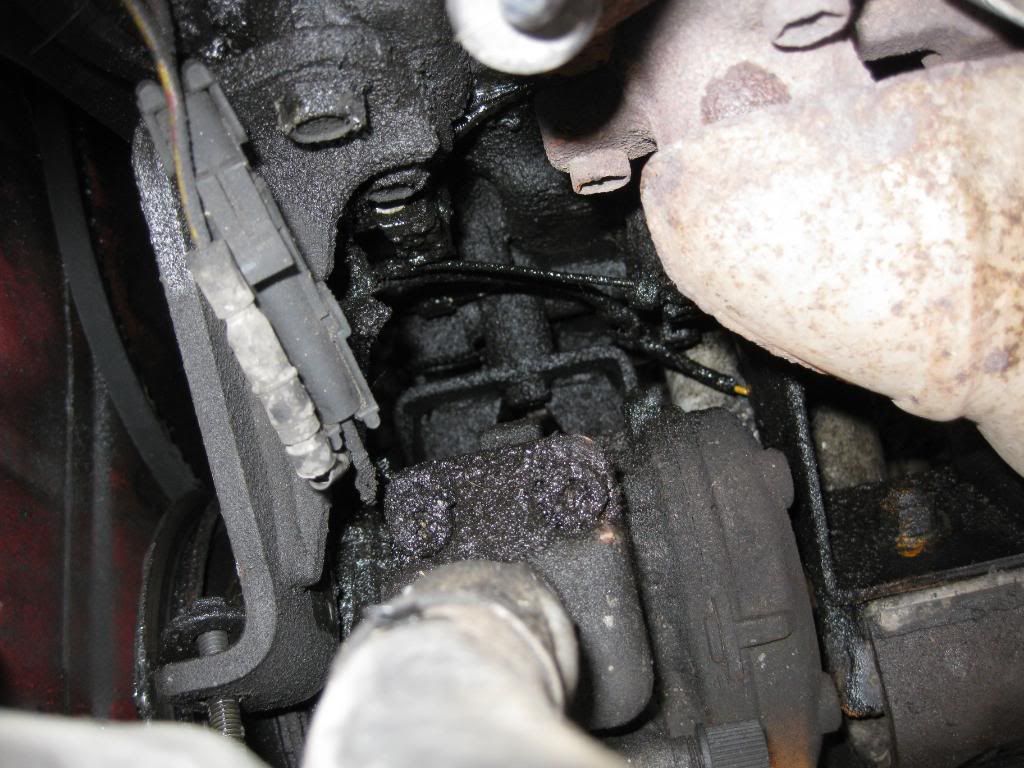

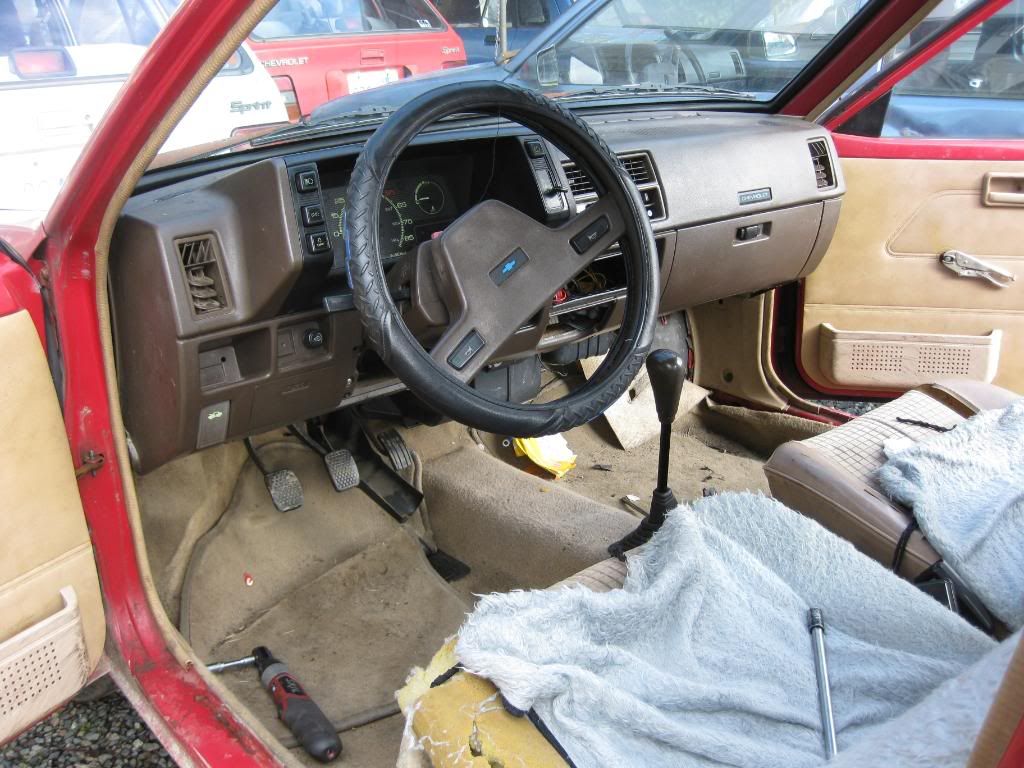

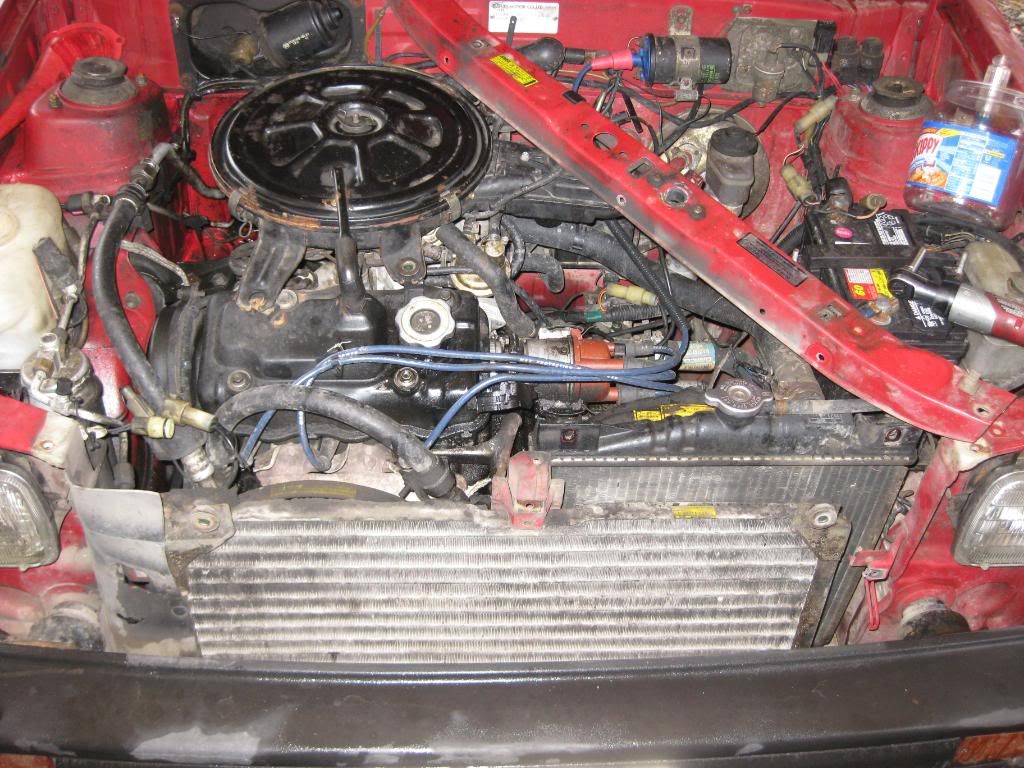

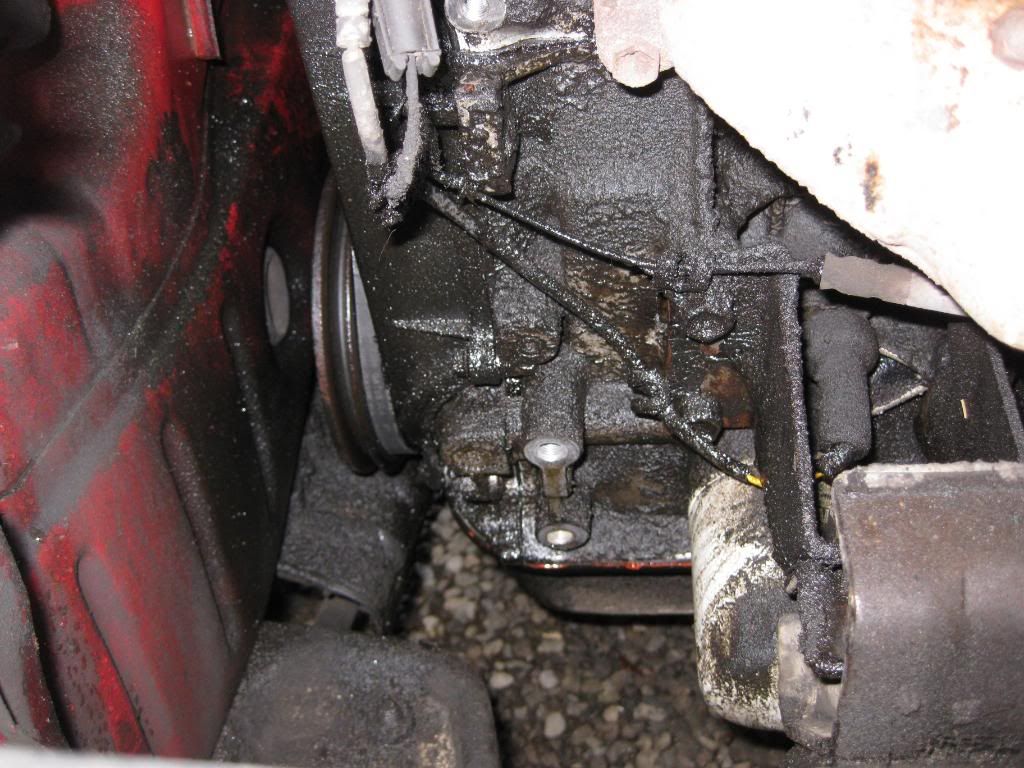

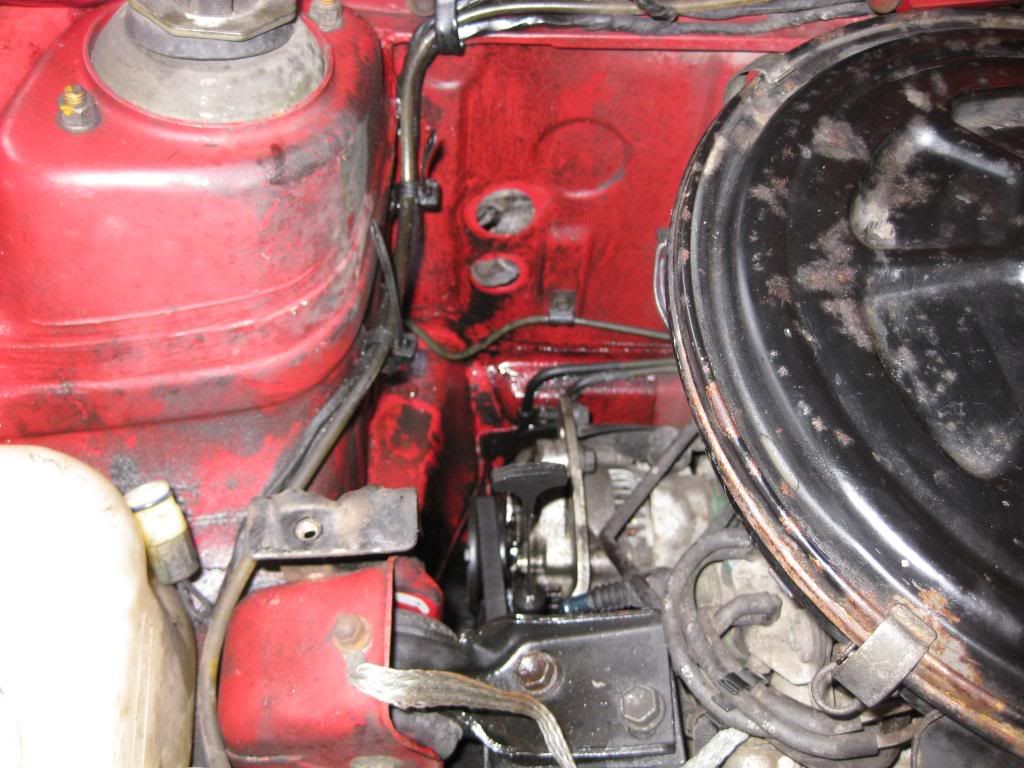

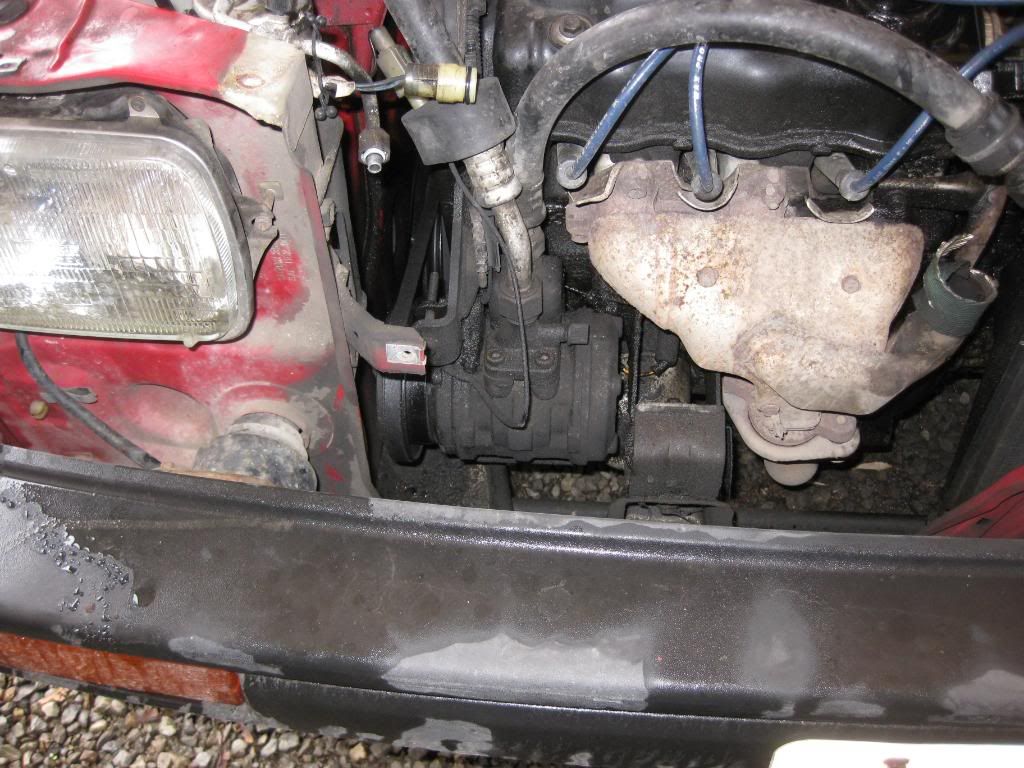

Before
.

.

.

.

.

.

.

.

.

.

.

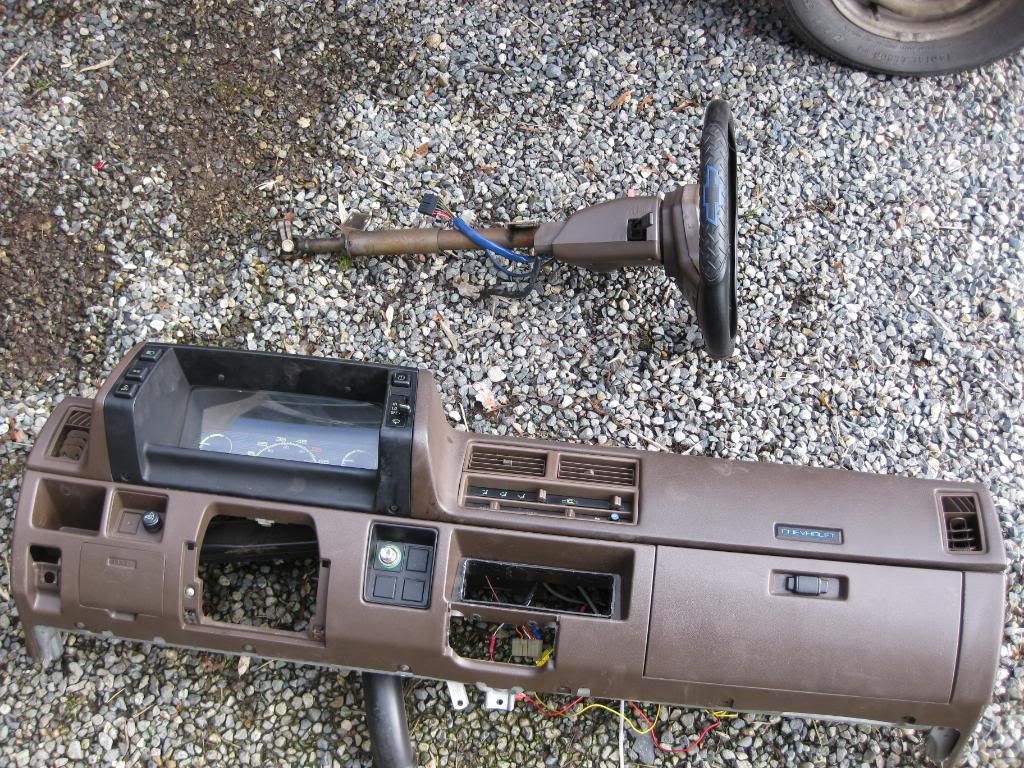

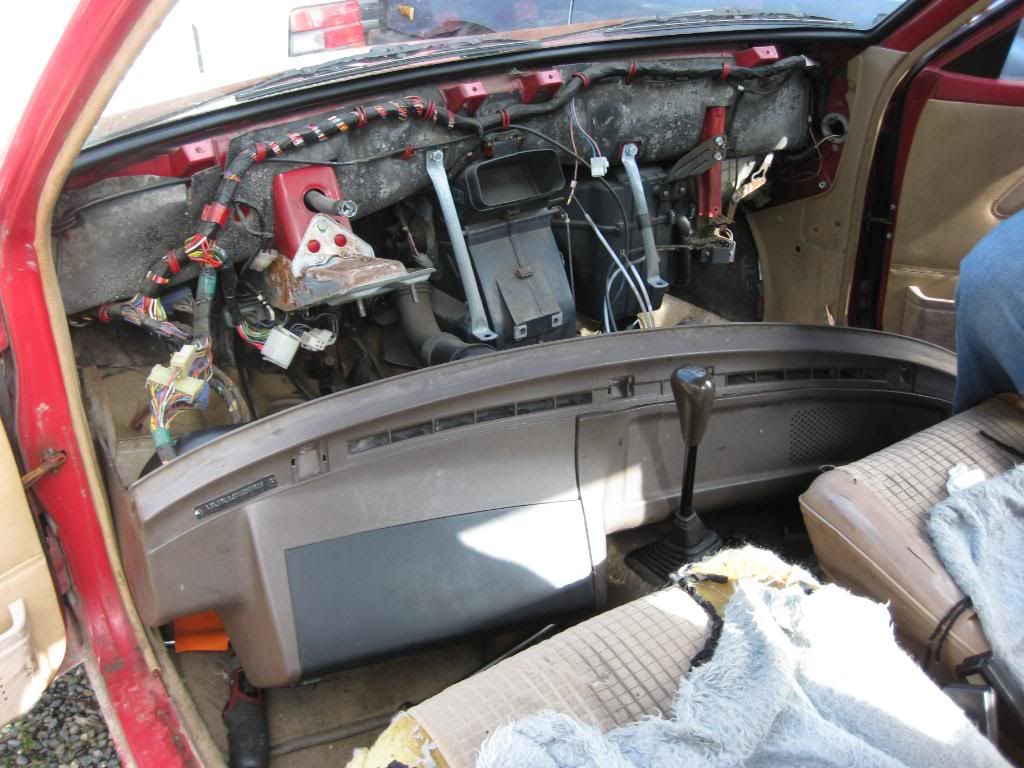

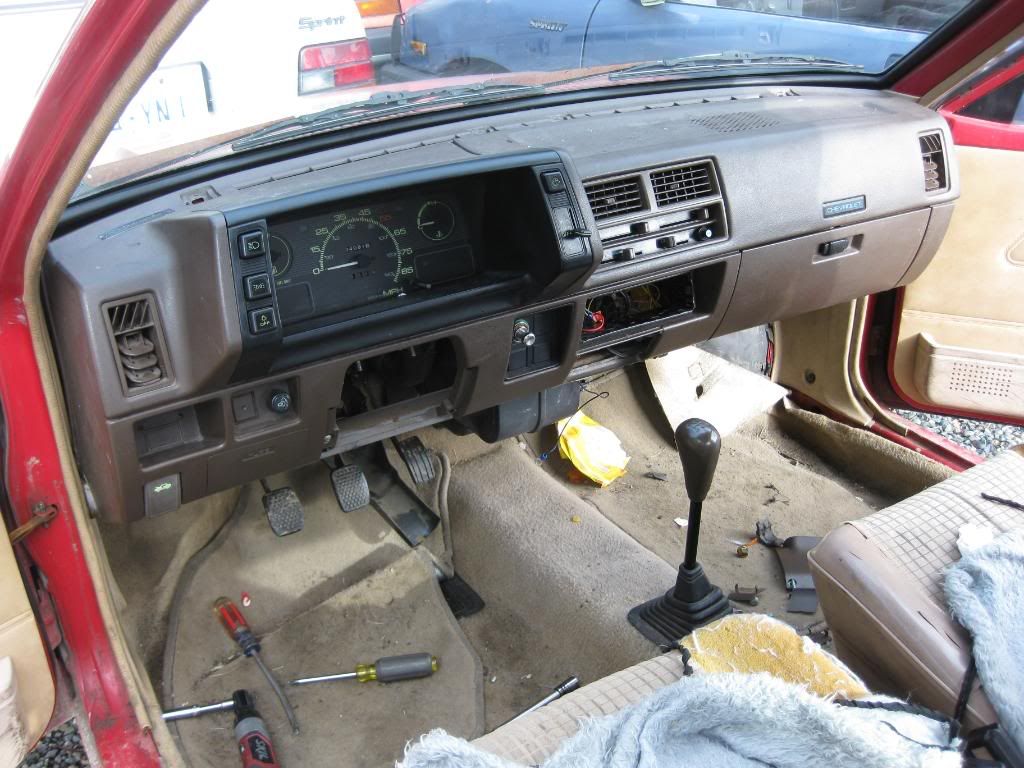

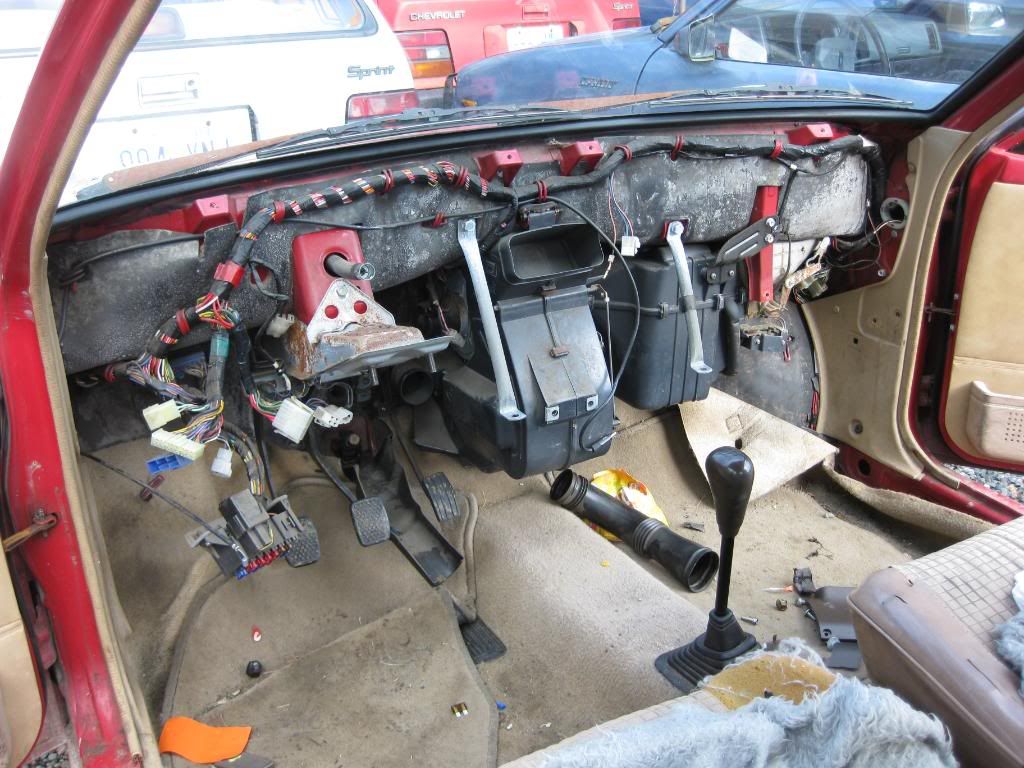

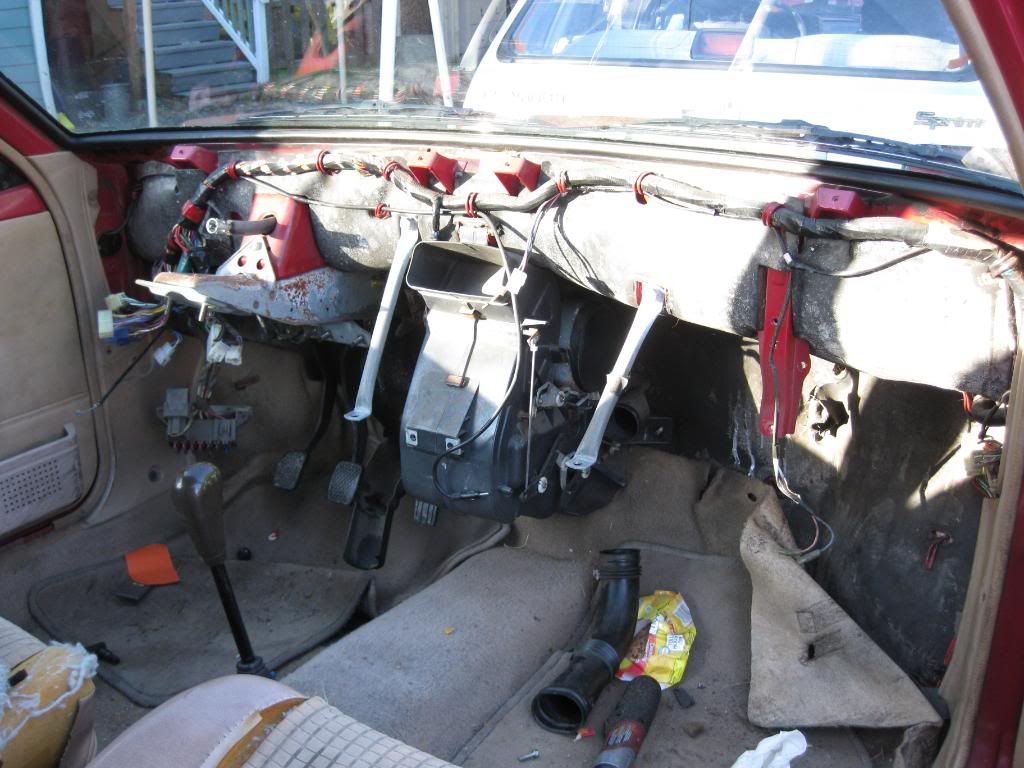

Removed the steering colum amd dash.


.

.

.

.

.

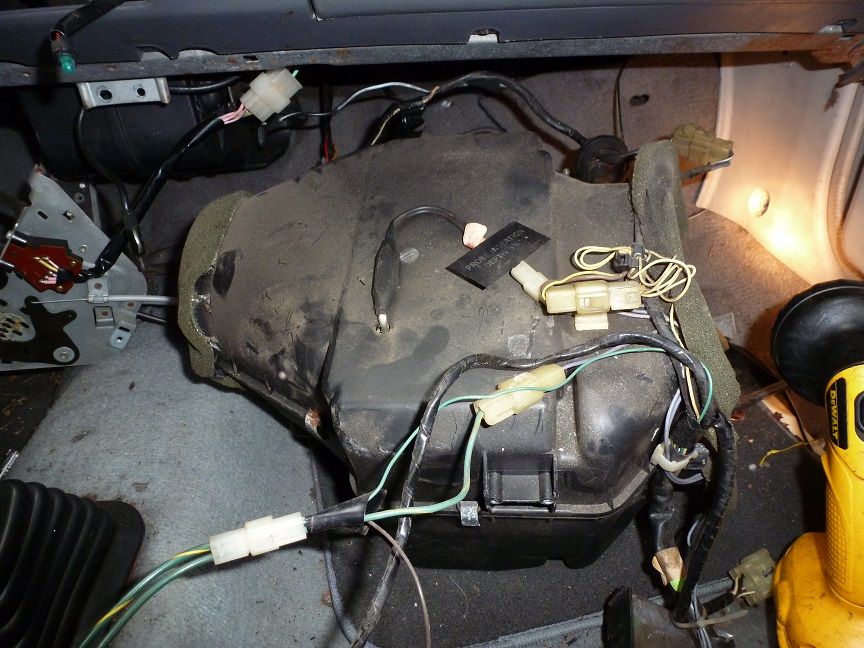

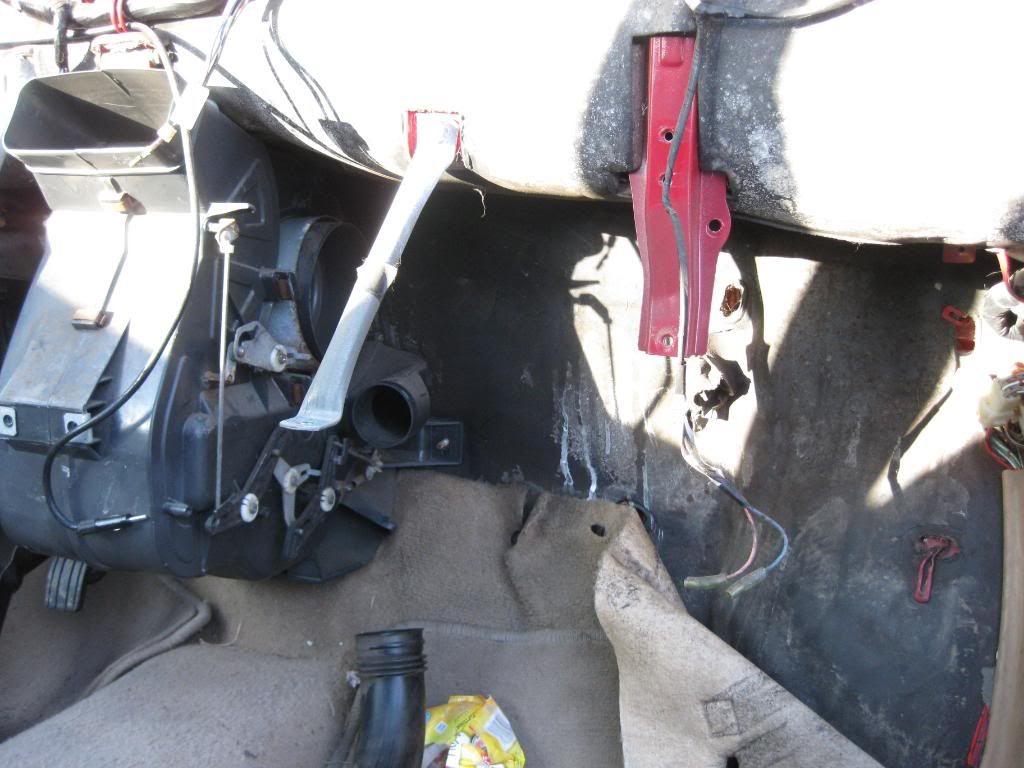

Here the evaperator/ expansion valve unit

.

.

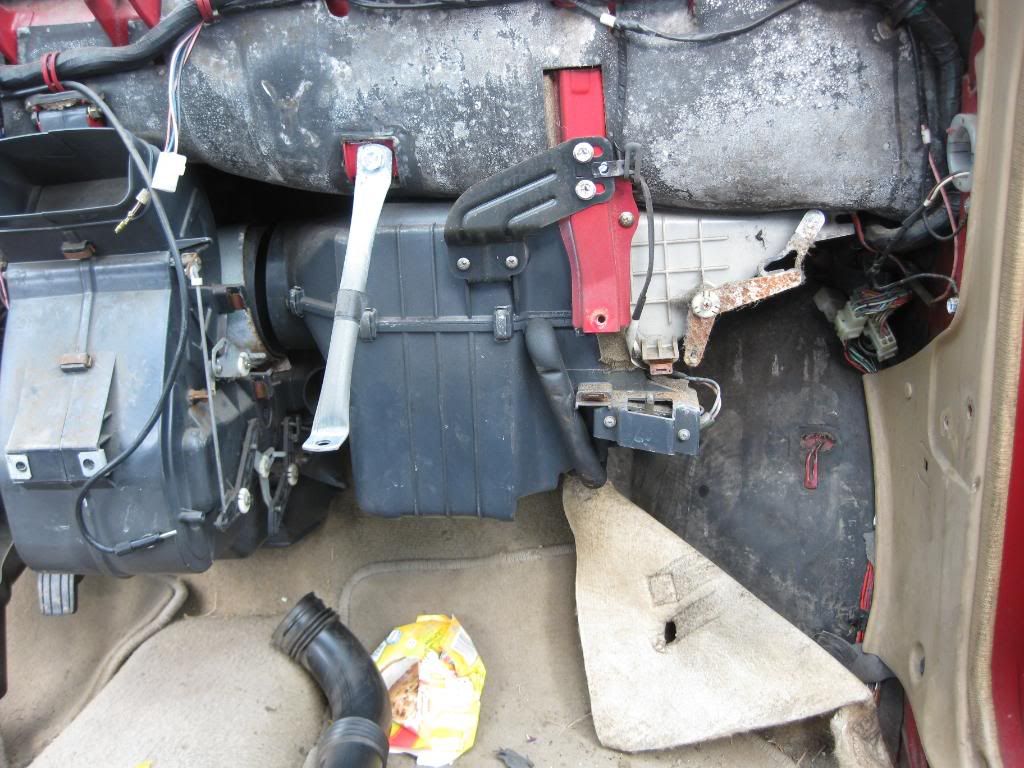

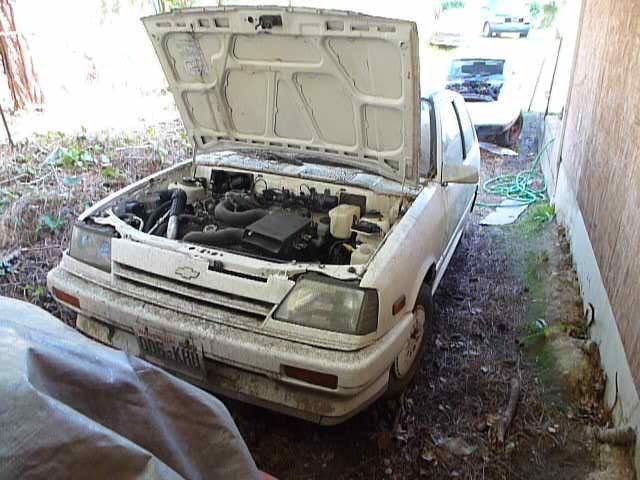

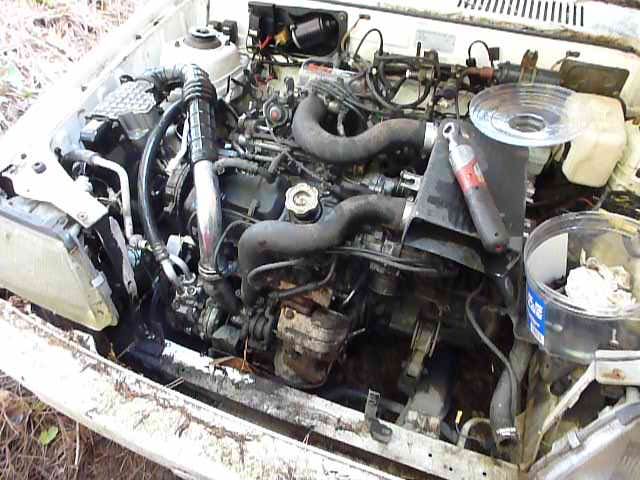

Here is the heater unit in "ElTurdbo" Blue 1988 4dr 5spd Non A/C Turbo Conversion Car
"NOTE" ........
.

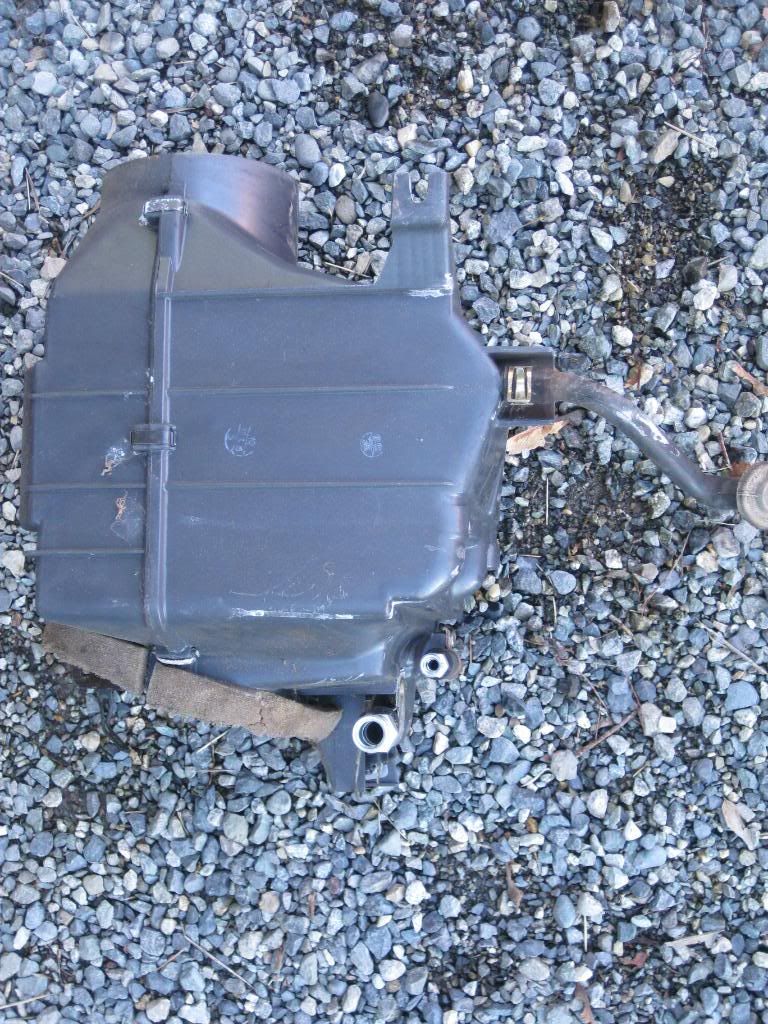

The clear 4" piece of pipe were the evap unit sits
.

.

.

.

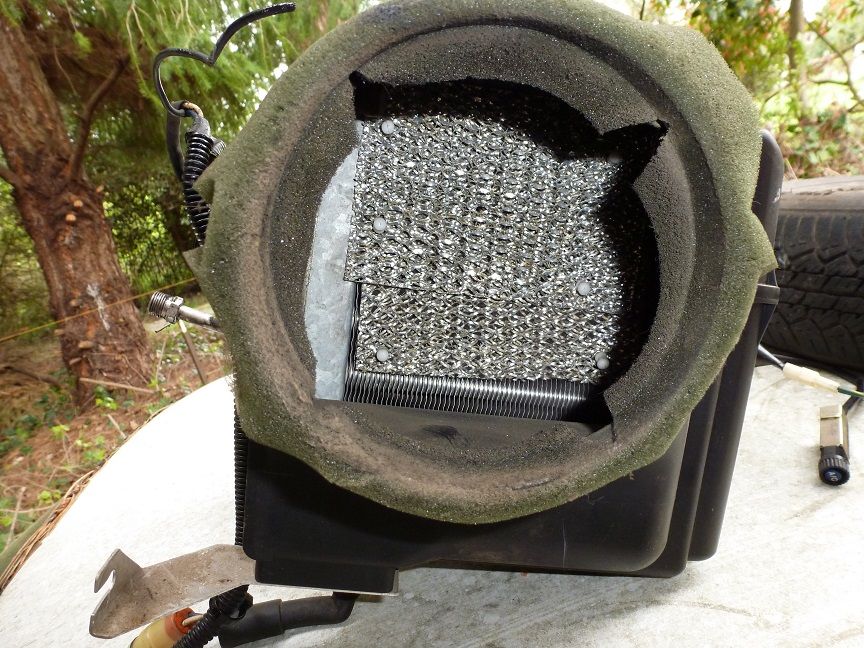

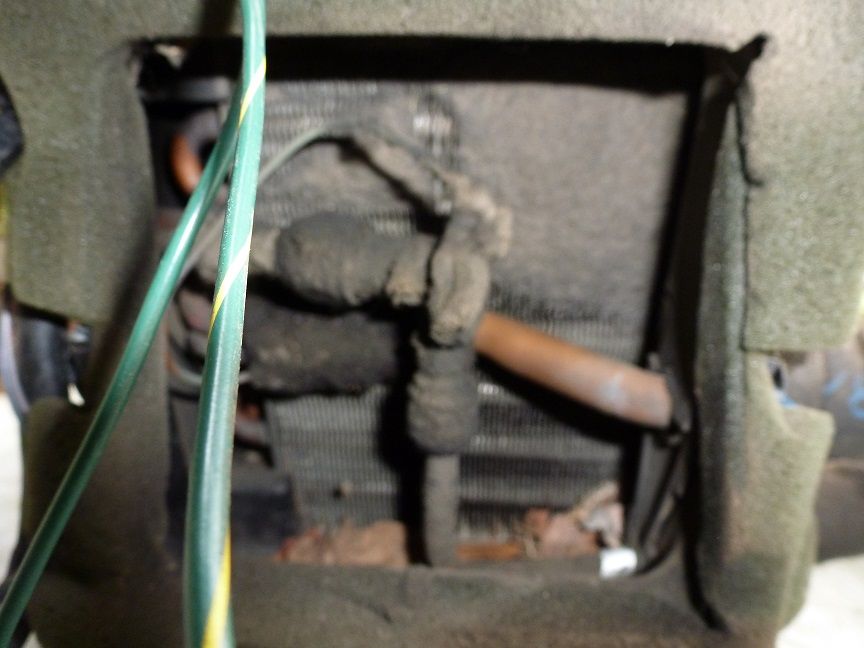

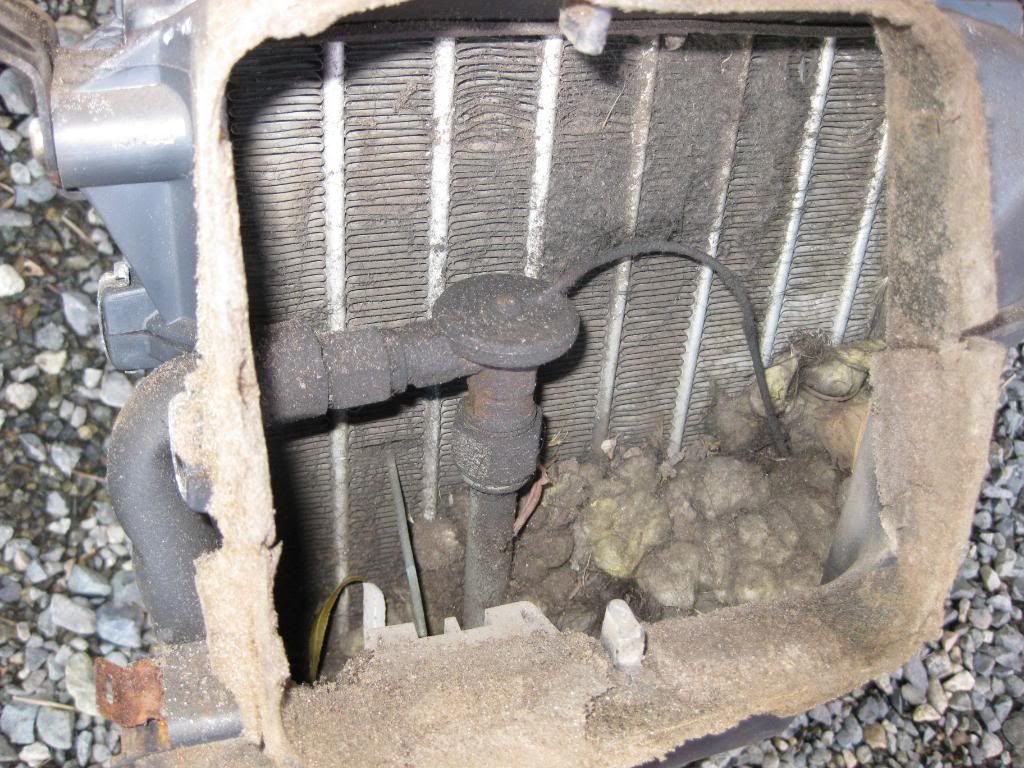

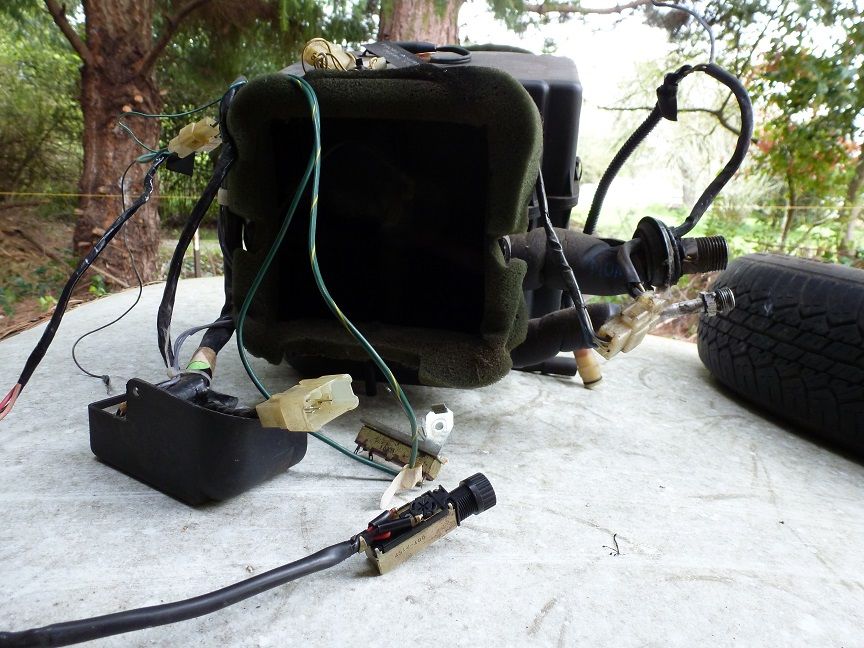

The back side coils with the exspansion valve dirty looks like a rat's home

.
.

.
.

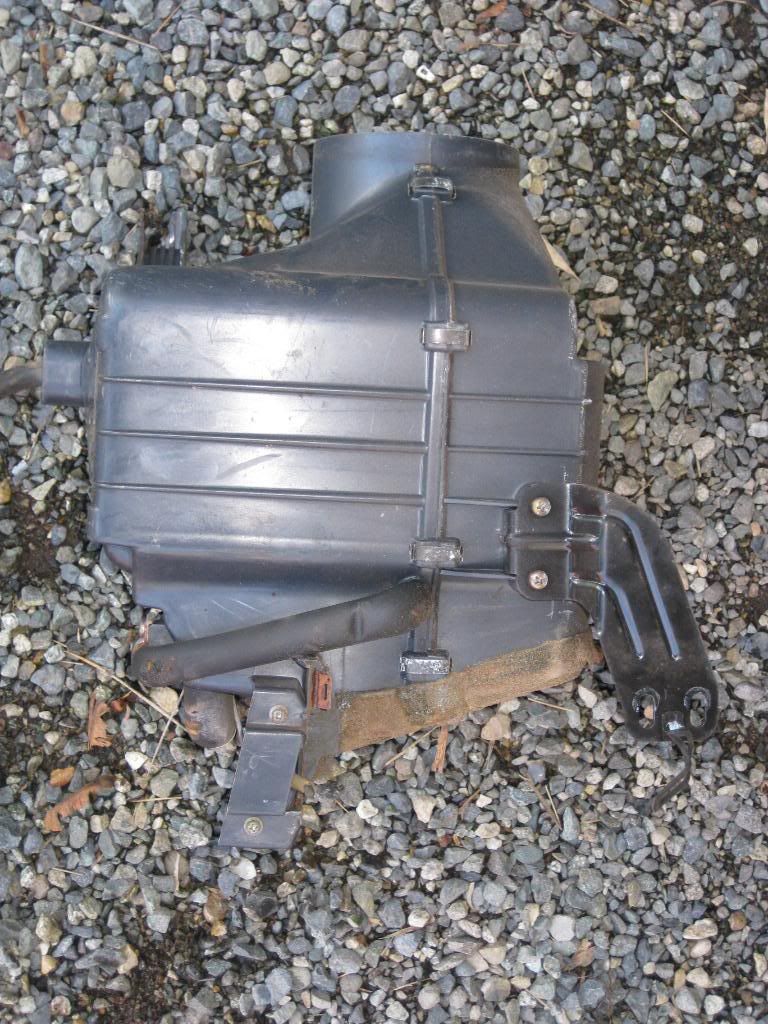

Out of car
.
.


.

.

.
.

.

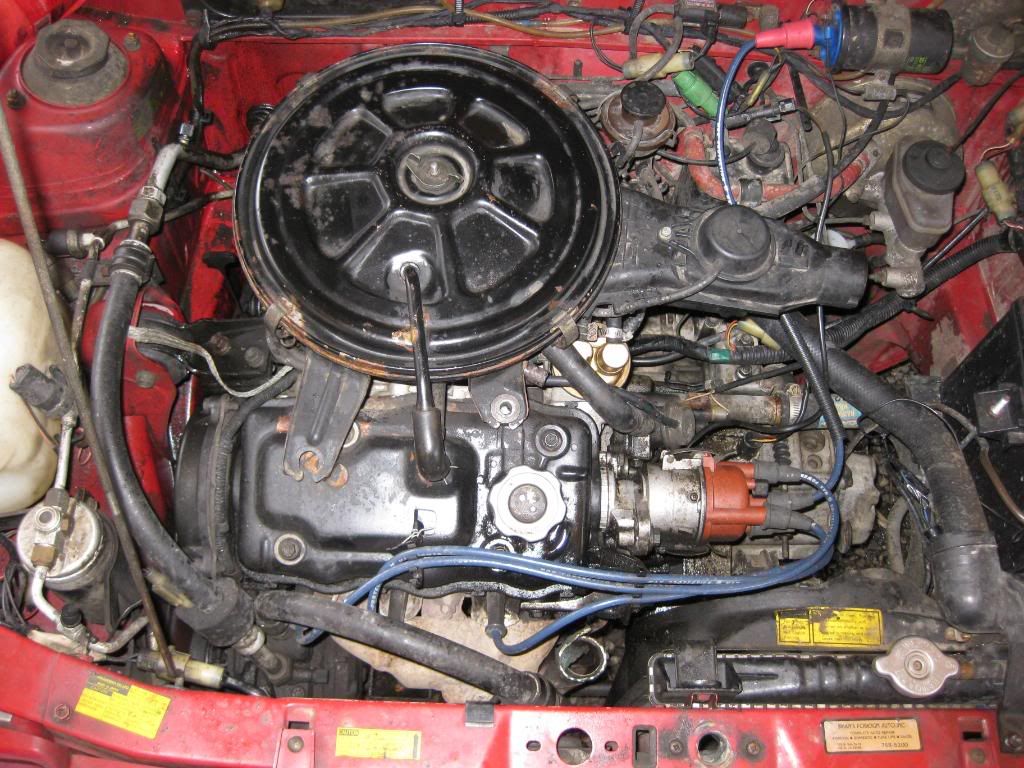

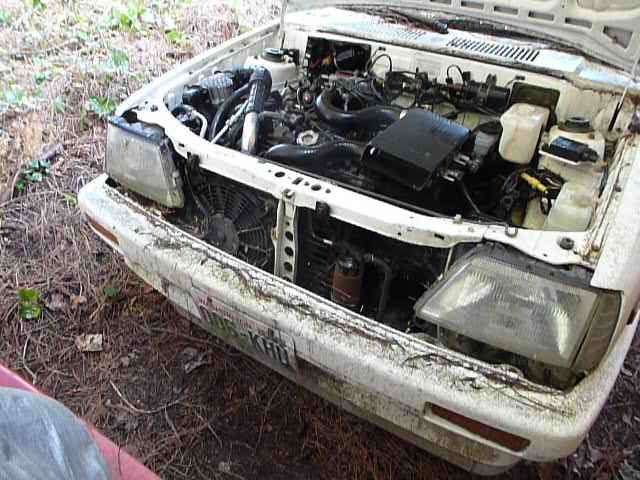

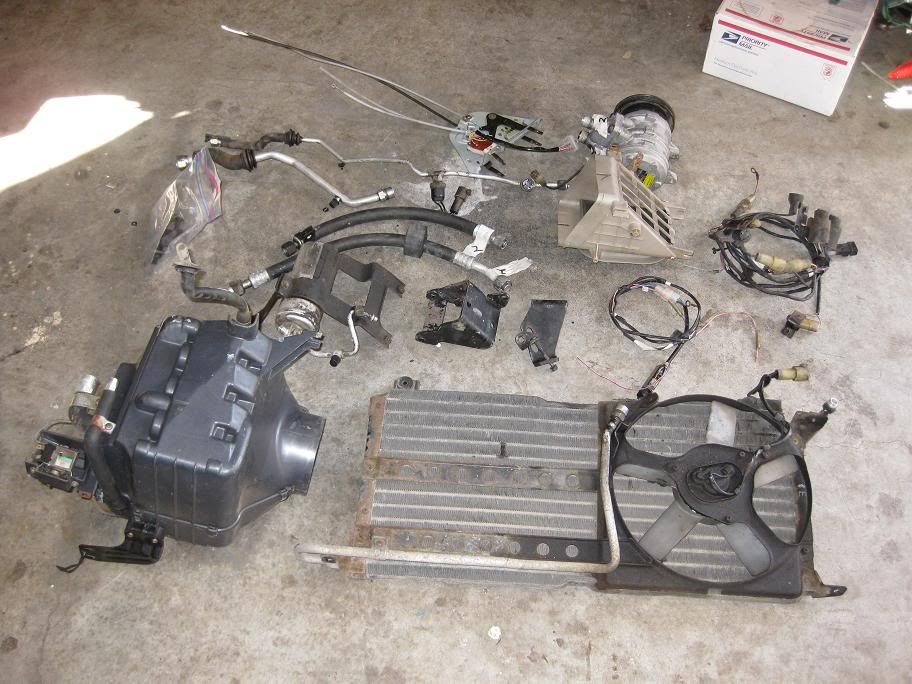

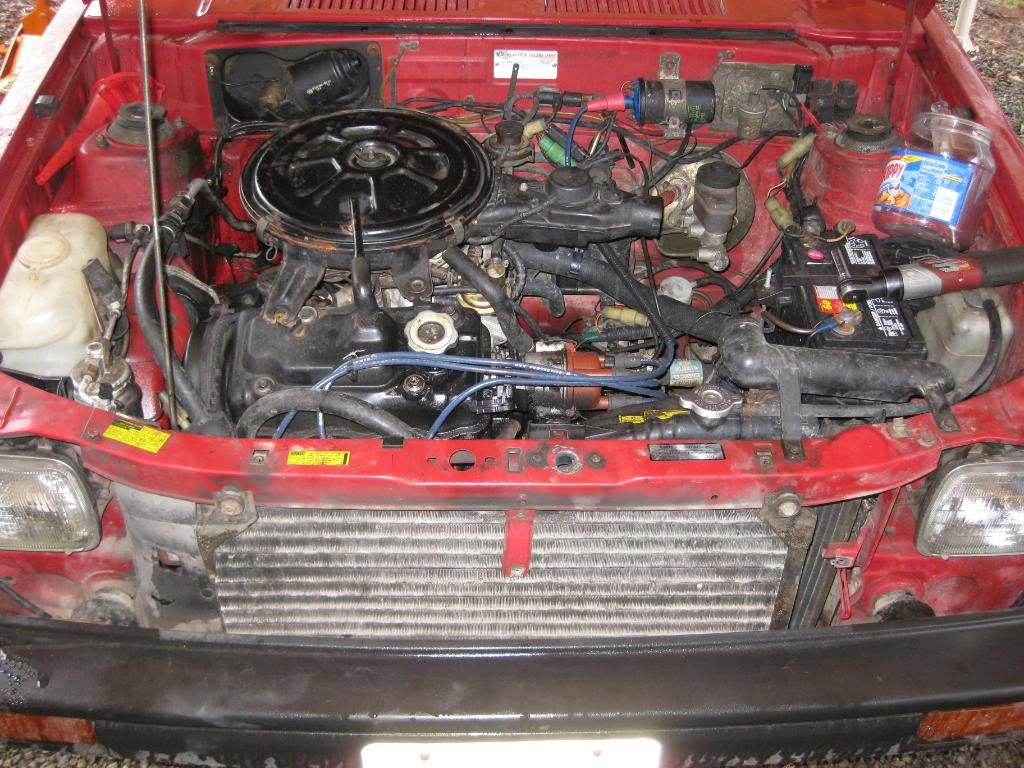

Engine bay wiring laid on were located under the hood
.


.


.

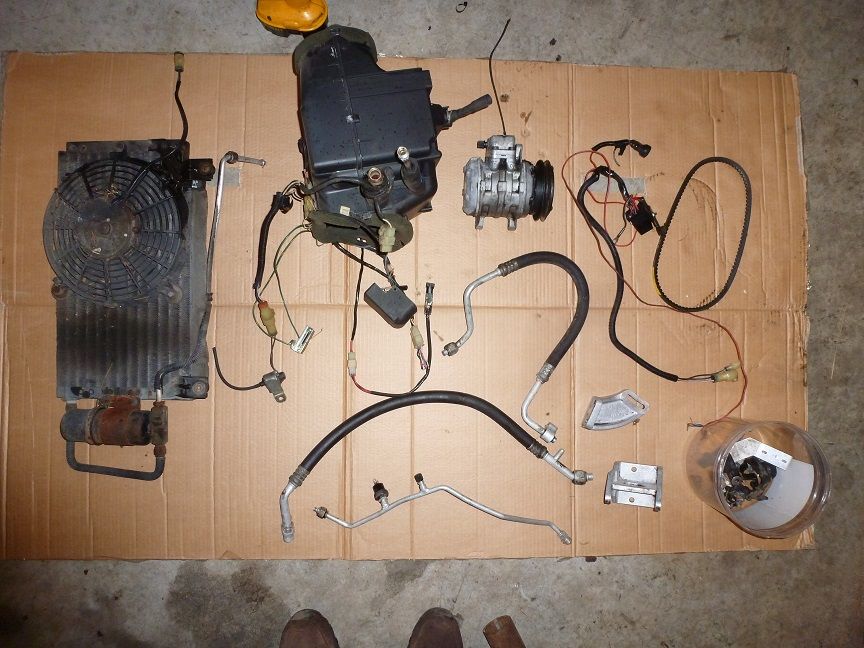

From left to right top first
.

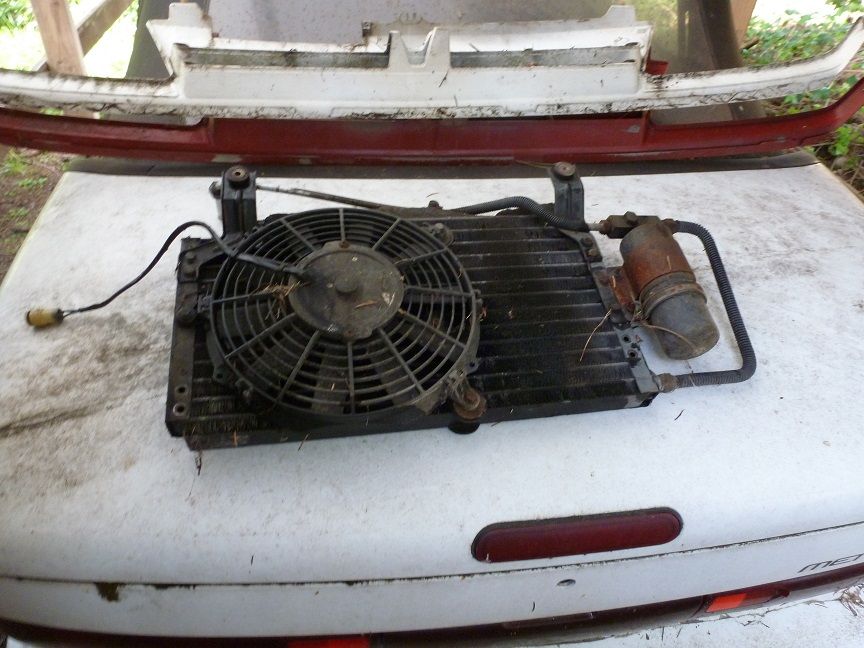

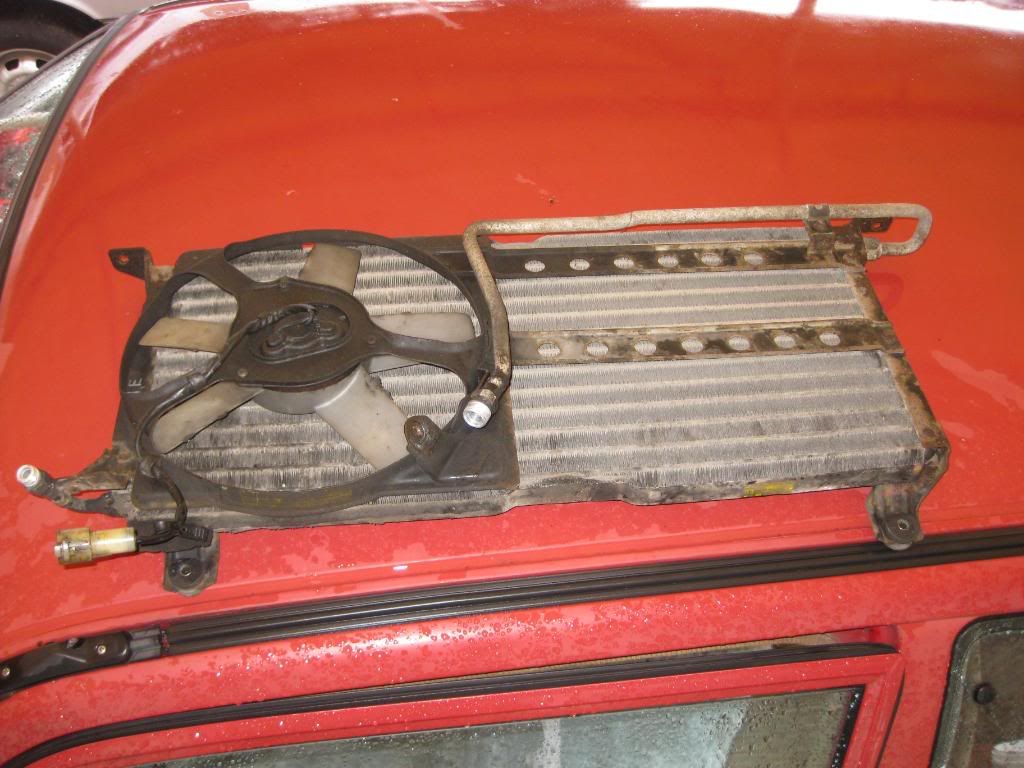

Condenser/Fan
Evaporator box with expansion valve & thermo switch
Wiring( Large)*****Engine bay (Hi/low switch, 15A Fuse, Clutch relay, fan relay, Idle up,
Vacume switch, low refrigerent switch, Engine temp switch,

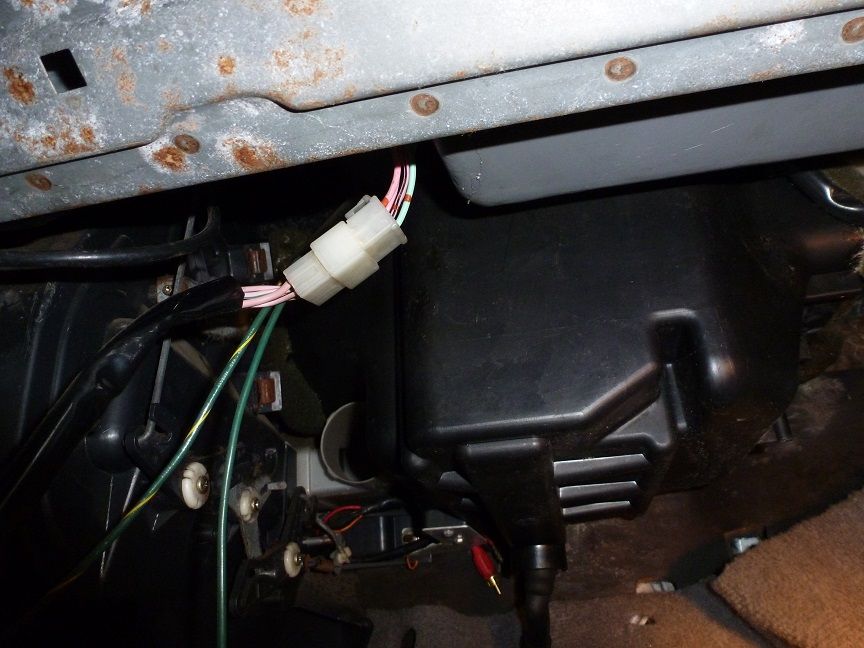

Wiring (small)***** Interior A/C Switch Thermo switch wiring
(Thermo switch local on front of evap)

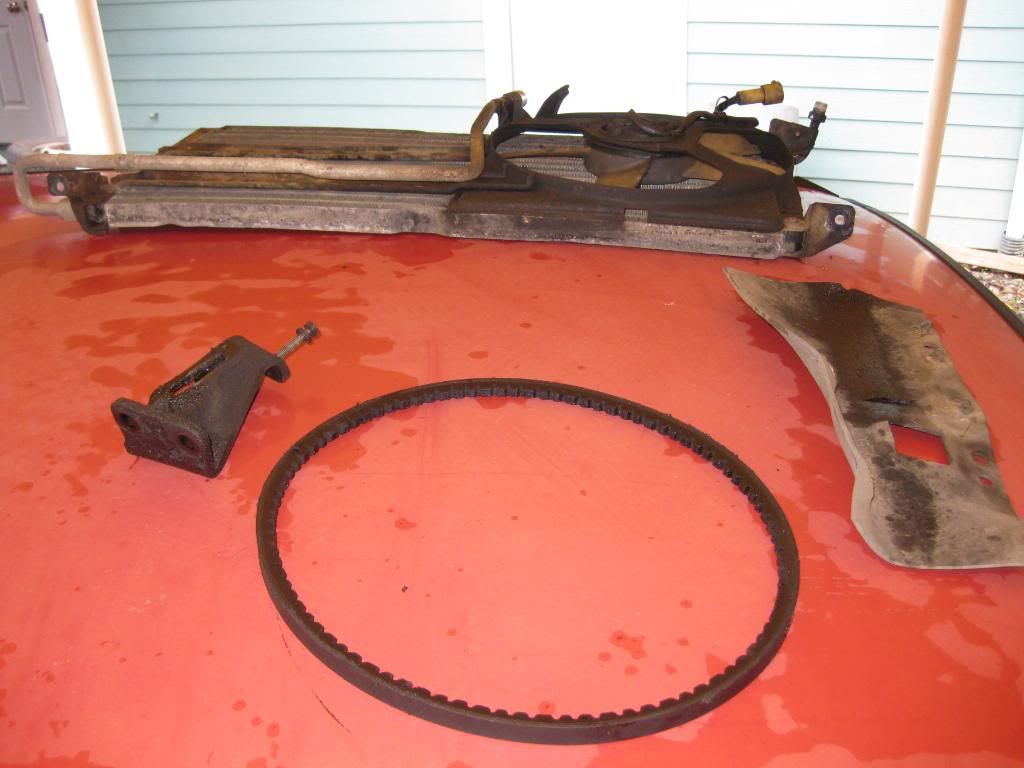

Compressor bracket's Upper, Lower,
Accumulator

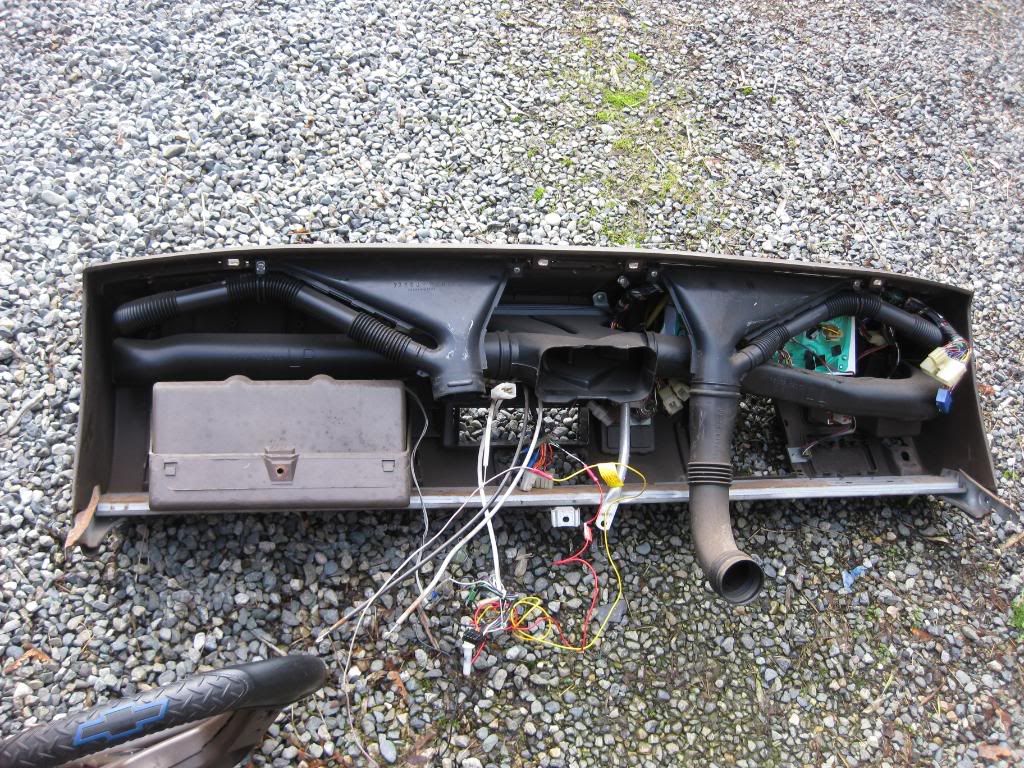

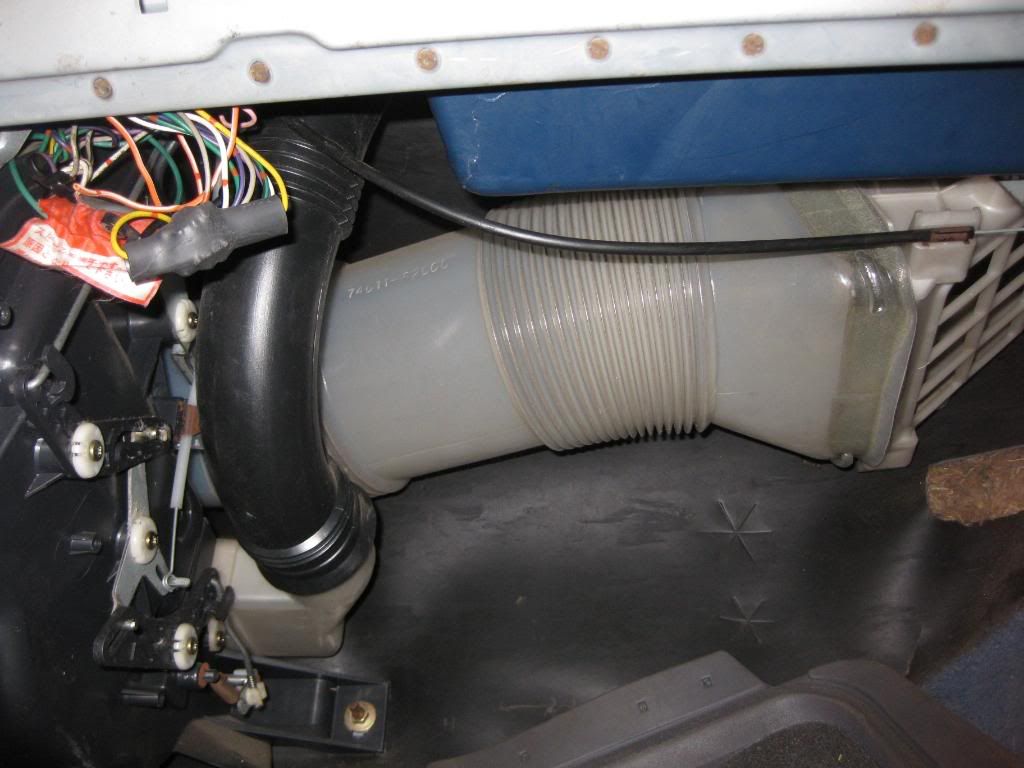

Interior ducting

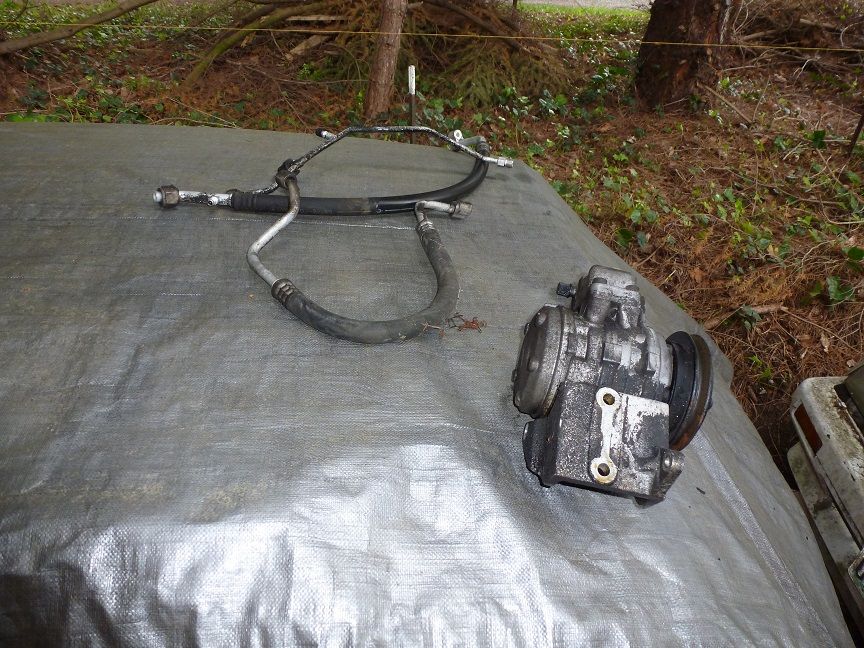

(2) rubber Hi press hoses
Mics Bolts/brackets (in bag)

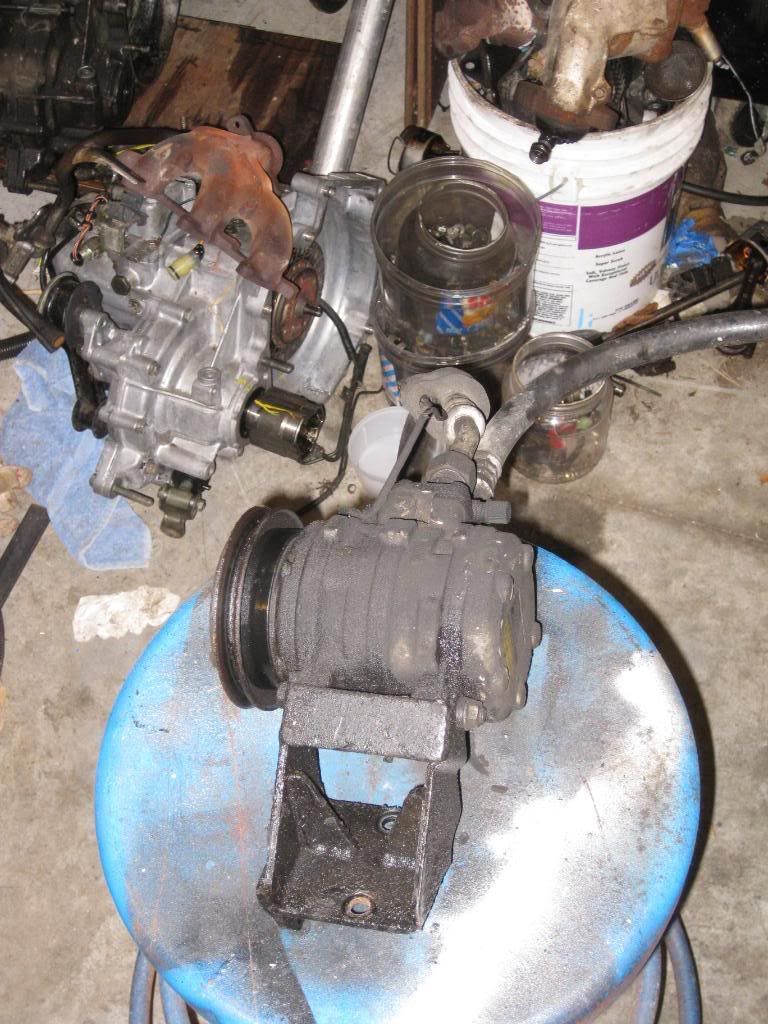

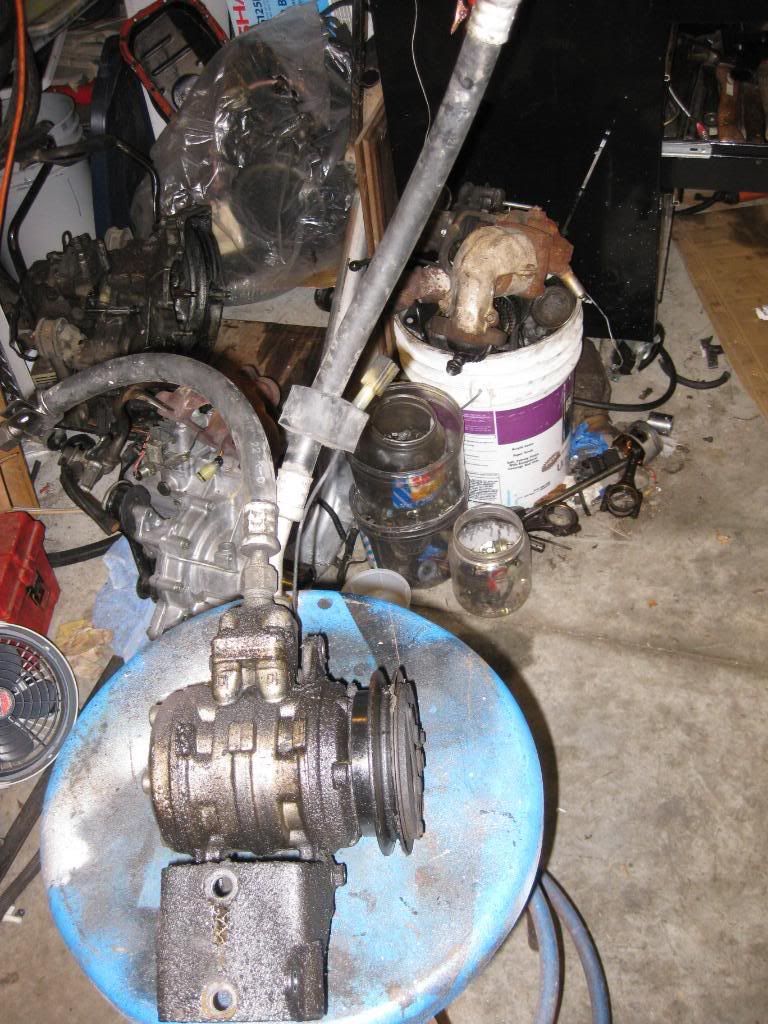

Compressor/clutch assmbly

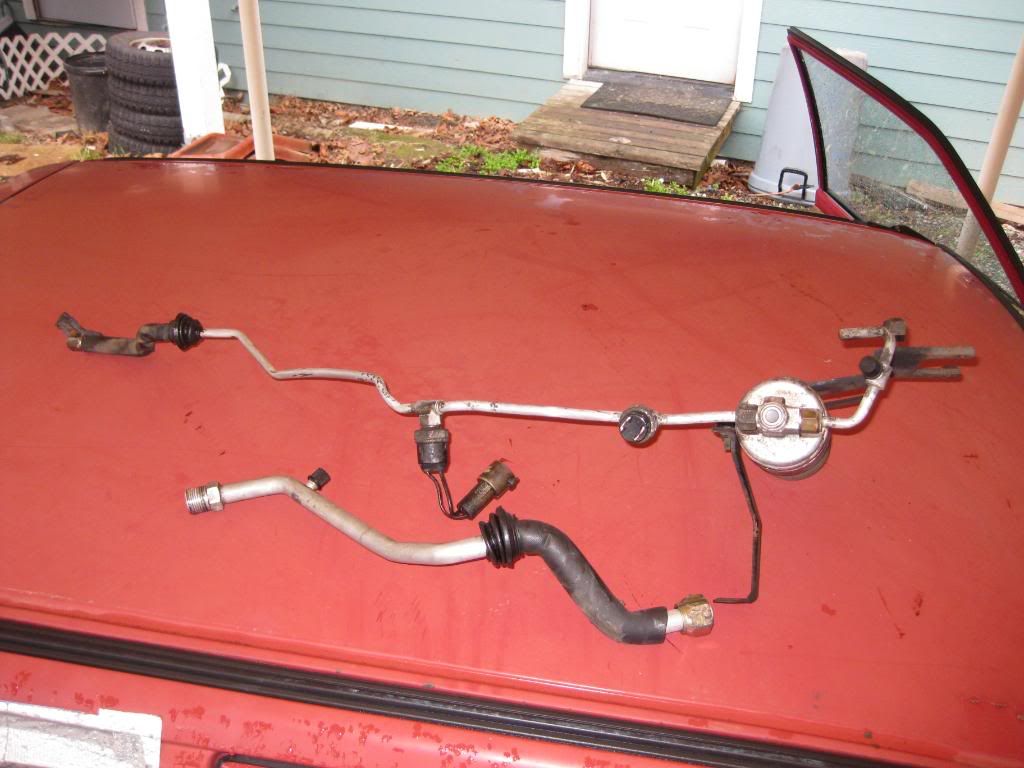

Accum,Tubing,
A/C cable controls
.
.

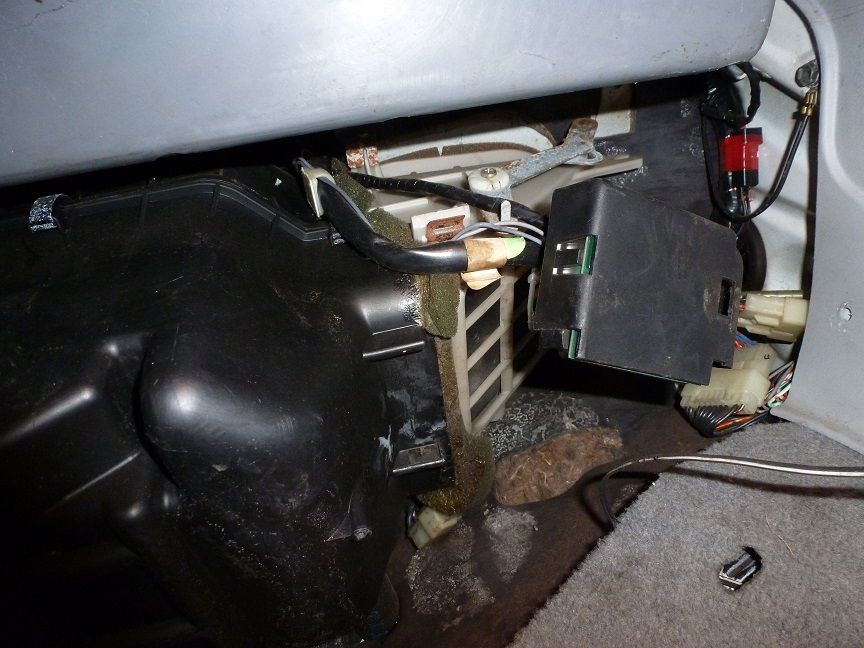

**(NOTE) no A/C amplifier in this car***
.
Here is a link to another thread about the A/C Aplifier....
.
viewtopic.php?f=14&t=46856
.
.


.

here's some more pictures of the complete A/c unit out of the 1985 chevy sprint
.

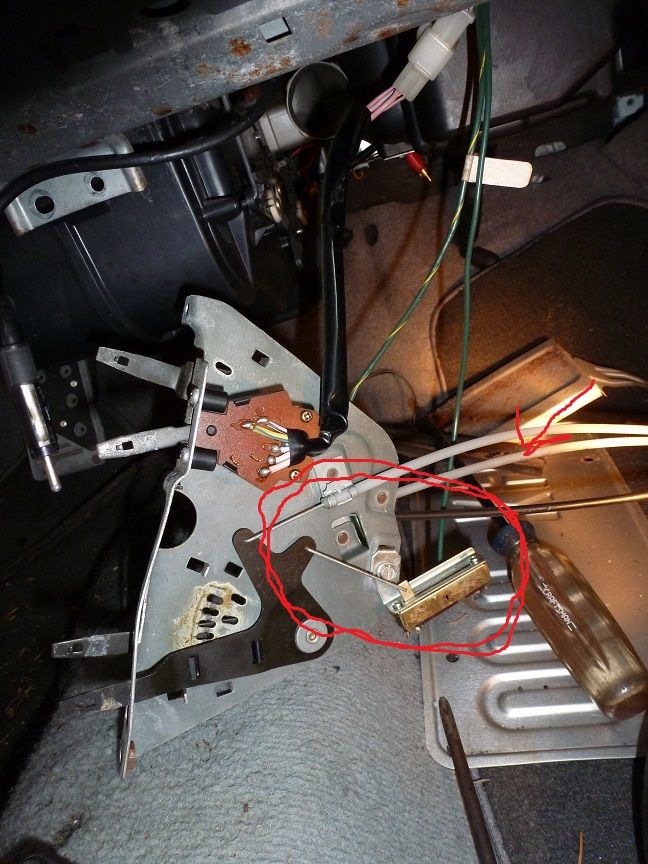

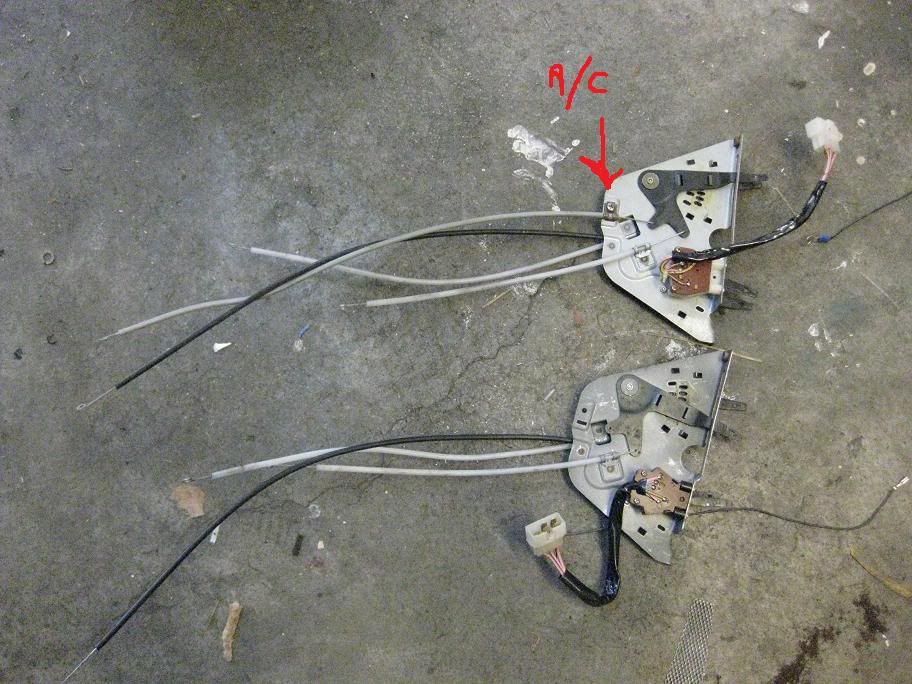

The controls on the A/C model has an extra cable (red arrow)
.

.

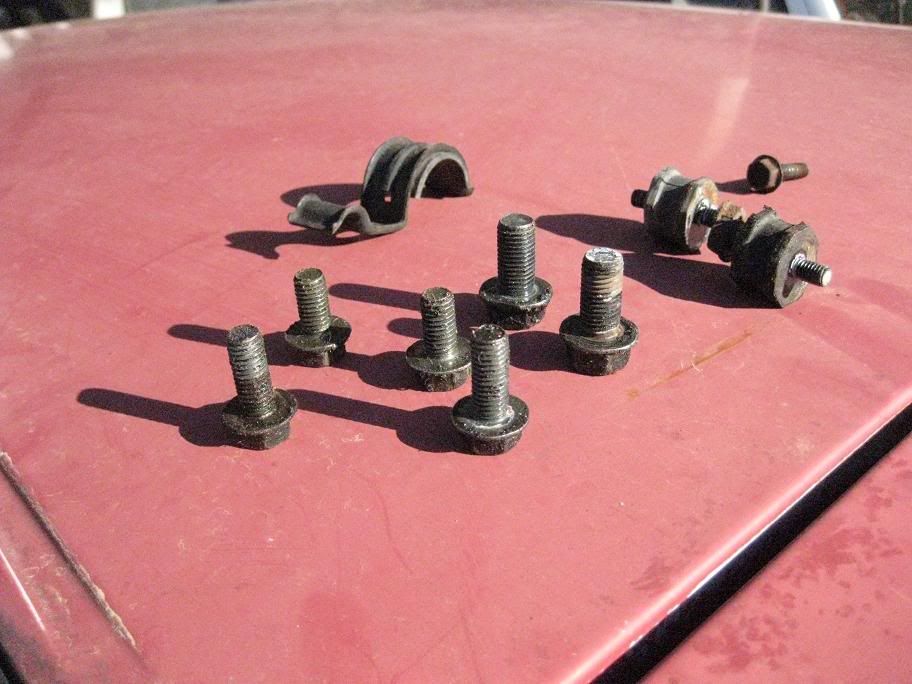

A/c misc bolts
.


.

.

,
.
(8) pieces in the box (1 ) of (2)
.


.
.

.
