Figured some of the swift fans might enjoy this project I'm working on. I'm swapping a 92 Swift 8v SOHC 1.3L into a 2006 Joyner SandViper. I bought the engine from some drugged out kid in Phoenix for $160 with the intention of rebuilding it and adding a turbo. If you want to check out more about the buggy build process, I've got a build thread here http://buggynews.com/joyner-800-suzuki-swift-1-3l-swap-t47879.html, otherwise I'll update some engine related stuff here.

Some planned upgrades:
-75mm vitara pistons
-Custom intake/exhaust manifold
-T25 Garrett Turbo
-MegaSquirt v3/MS3X
-Boost Control
-Fully sequential MPFI
-COP Ignition
-Porting (especially exhaust)

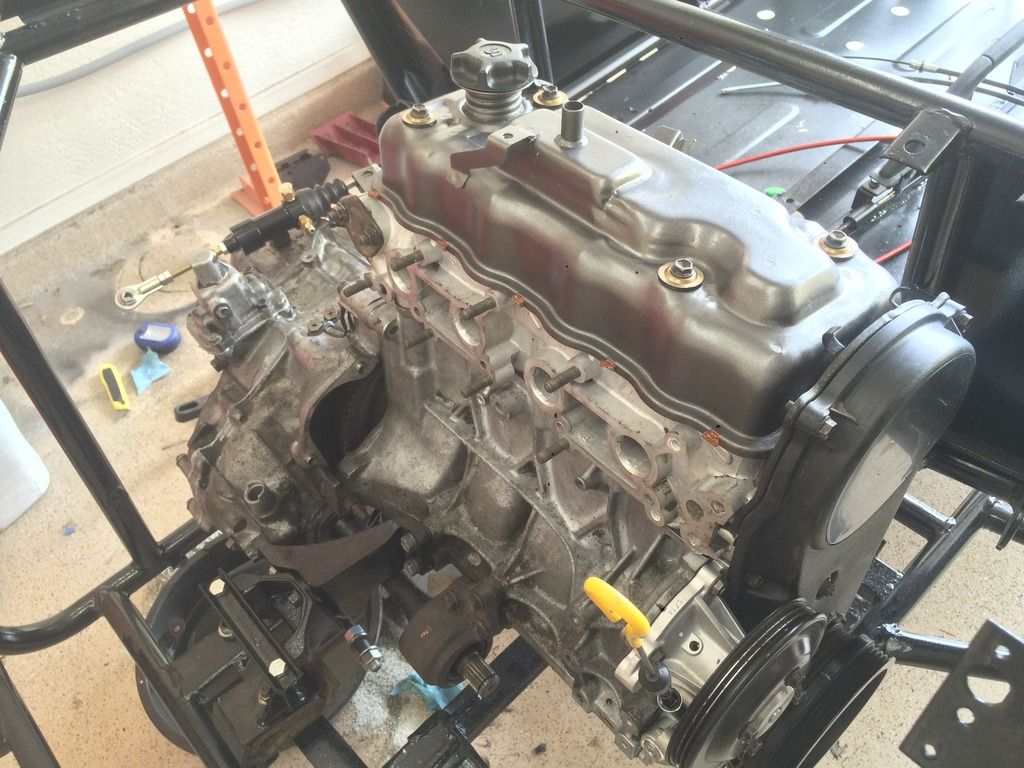

Here's what the engine is going into (has since been repainted):



Here's the 92 engine with 160k miles before tear down:



Pulled off the dirty head



Lovely surprise thanks to the kid destroying the clutch prior to selling this engine to me. Those are all clutch fibers.



Made this little bracket to hold the main crank pulley to get the bolt off. It worked so well I had to share it. I was hitting that bolt with a 1200ft-lb impact hammer for about 20 minutes before making the bracket. Once I made that bracket, the bolt spun off with the impact in a few seconds.

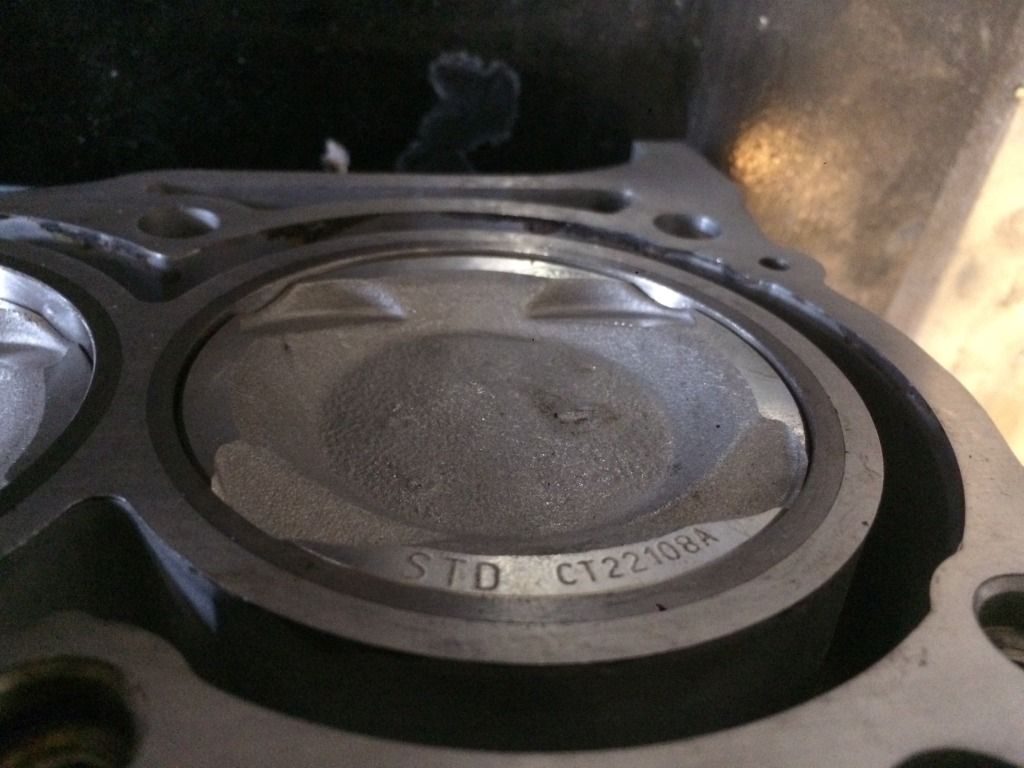

After 25lbs of soda blasting



The H-beam rods and vitara pistons going into this build.



Block was dropped off to be bored out yesterday, so I should have some nice updates on the engine over the next few weeks.

the ms3 is overkill, save some money and use the ms2 ver3.

the ms3 is all set for 8 cylinders and the kit includes 4 extra coil and injector drivers, more than you'll need.

if you want to run sequential and direct, use this quad driver board http://jbperf.com/quad_ign_inj/index.html and omit the injection and ignition drivers on the heat sink for the enclosure. the quad driver board runs way cooler.

i'm taking for granted that you will do a multiport injection with the turbo mod.

_________________
1991 Blue Geo Metro Convertible highly modified 1.0L Turbo3 5 spd. - 1991 Red Geo Metro Convertible customized with a Twincam 5 spd.

My Turbo3 Project
My Cardomain Page -Ol' Blue
My YouTube Channel
My Photo Gallery
SAAB Sonett II

Those rods are overkill, too and the Vitara pistons not a great choice. You'll need a cam if you want to make some decent power. Stock cam is WAY too mild

_________________
Contact 3tech: [email protected]

Well the MS3+MS3X setup was purchased a while a go, but I appreciate the recommendation. I'm a software engineer, so I sort of specialize in electronics overkill anyway. Not to mention I got it from a part-out for $350!

Yeah the rods are overkill...this project exudes overkill.

What's wrong with the Vitaras?

And I'll end up with a cam from someone who makes them for this engine. Wish I knew someone...

The Vitara piston sits too low in the block.
People used them in the DOHC application because that's all that was available, but with the size of your combustion chamber, you could have really low compression.

SOHC 16V 1.3 pistons are the best choice, but I think I told you that before.

226/395 cam is what you want

_________________
Contact 3tech: [email protected]

Well it'll be interesting to see what the compression ratio ends up being. I'm expecting significantly lower, but too low to tune around? I guess we'll see. Those other pistons do look quite a bit less dished too. Maybe a fallback piston.

Cam noted. Thanks.

It's not so much the dish as it is the deck, or pin height. The 1.6 piston sits too low in the bore. The 1.3 would be flush, or possibly even stick out a bit, which you could easily machine off for a (perfect) zero deck height.

_________________
Contact 3tech: [email protected]

Took some quick measurements today while assembling...

0.8mm deck clearance
74.9mm bore
75.5mm stroke

32cc combustion chamber volume
12.5cc dish volume
~.7mm gasket thickness

I calculated 7.51:1 compression ratio.

About what I was expecting to see, leaves much room for boost. Totally doable.

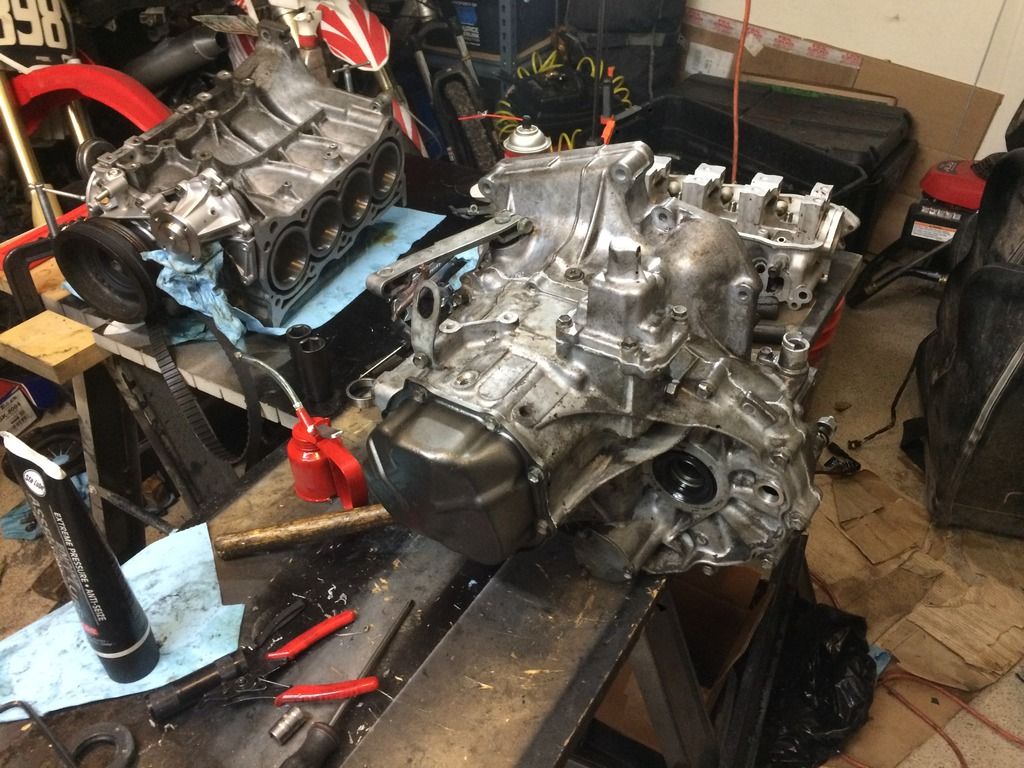

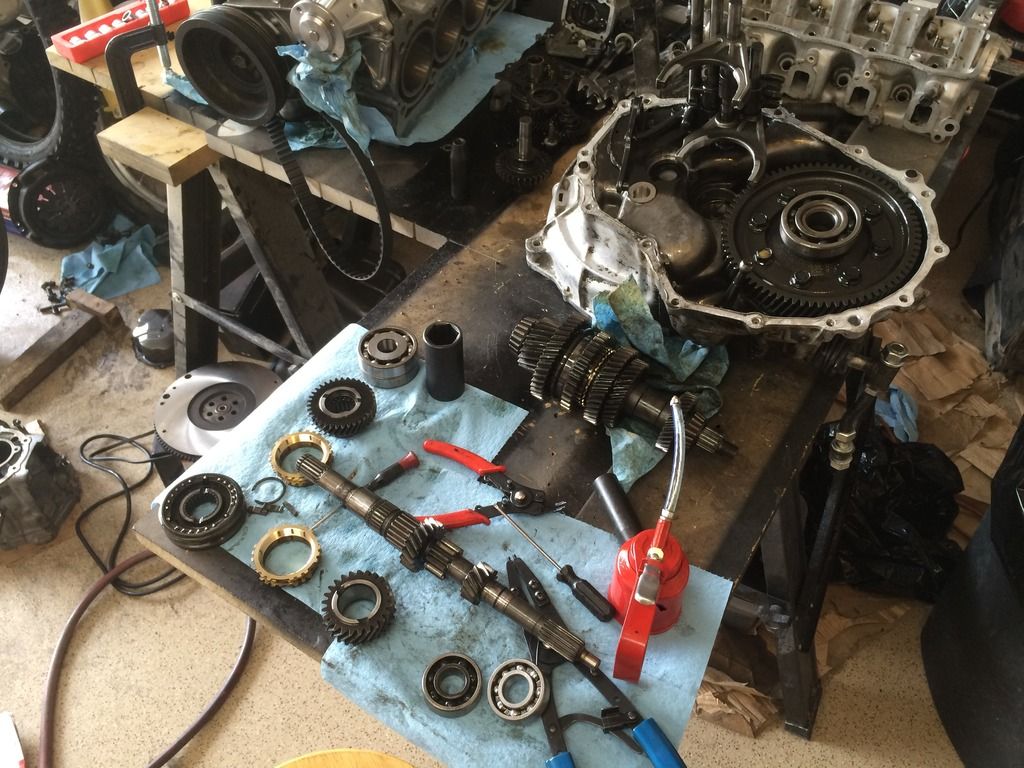

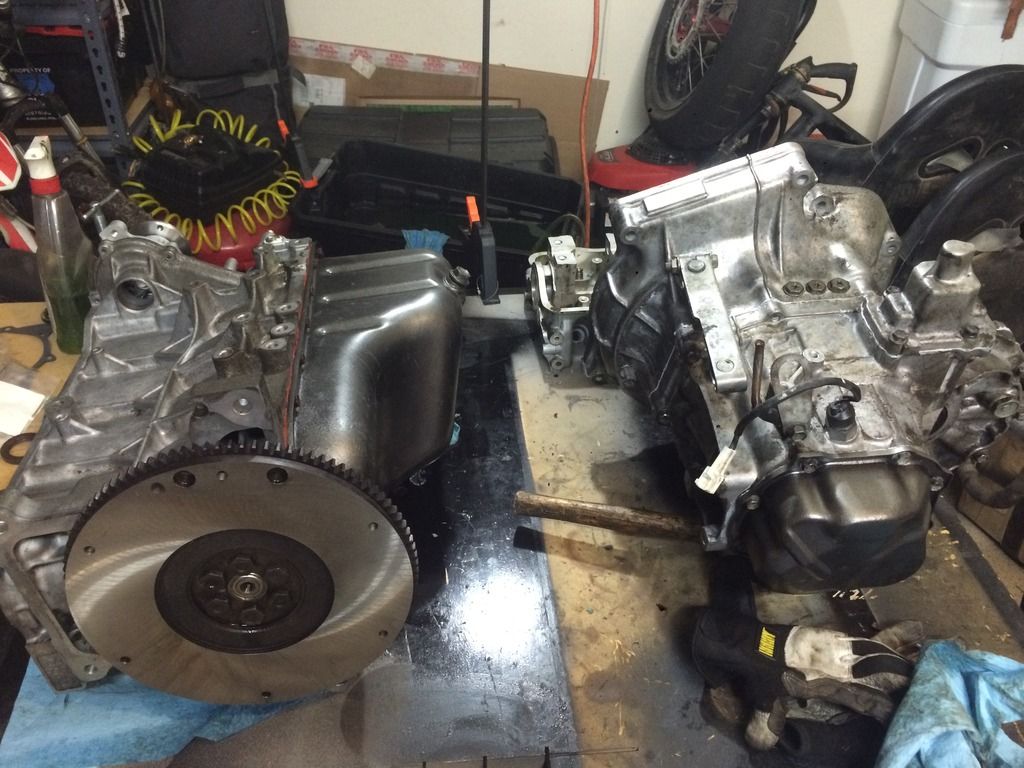

New synchros and bearings









Hydraulic slave with a fairly crude bracket.



Started fabbing the exhaust

That's optimistic. Gasket thickness will be 1mm and I think (could be wrong) that the chamber is larger than that.

_________________
Contact 3tech: [email protected]

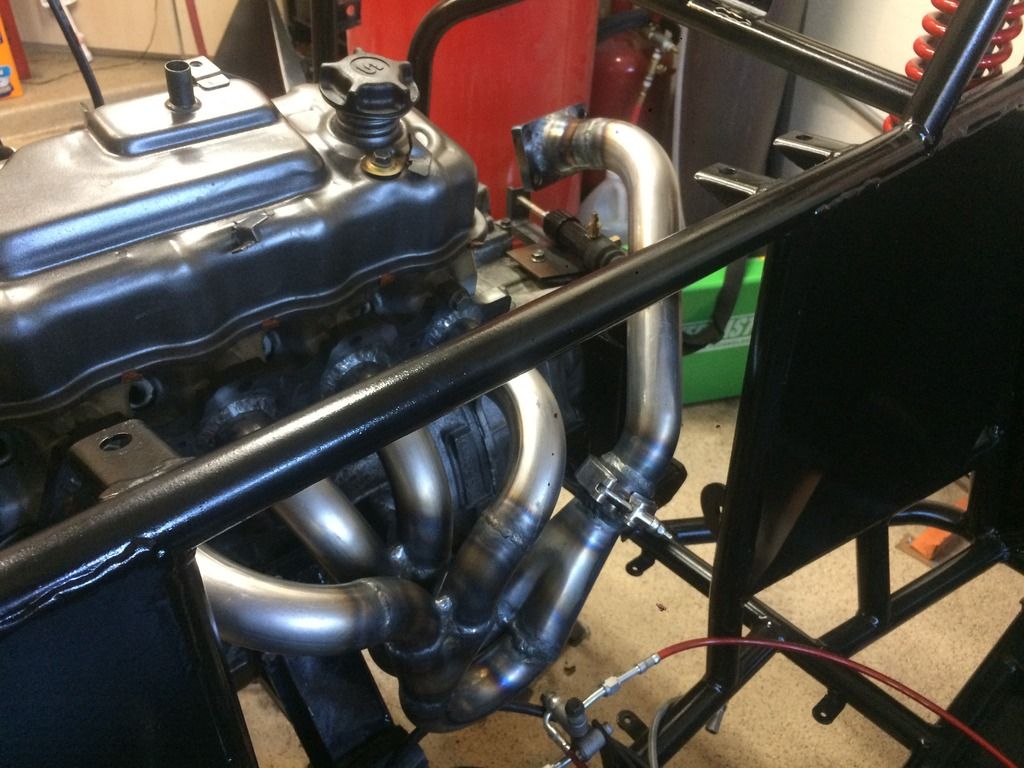

Completed the header and turbo mounting this weekend.
