heres a pic of a friends of mine swifter,with a gti engine and a honda d16a8 , intake manifold

_________________
http://www.cardomain.com/memberpage/811447

it looks identical to the cultus manifold , but even bigger, with a 58mm honda tb

_________________
http://www.cardomain.com/memberpage/811447

This is really cool dude. Does it require any modification or is it a direct fit?

_________________
MK2/3 PARTS FOR SALE - EVERYTHING MUST GO!

1993 Swift Gti

this is very interesting...

more details please!

_________________
2017: I forgot if my memory loss is a good thing or bad thing.

LNLC Founding Member

Certified to advise if this thread is GAY

from what i heard from my friend, it requires to be cut and welded to the stock manifold part that fits the head, so the bolts get plug ang play
it´s a hard work made by a machinist, but it´s worth it

_________________
http://www.cardomain.com/memberpage/811447

soon will be in my car

_________________
http://www.cardomain.com/memberpage/811447

If i'm not mistaken I think suzukird modify them to fit the gti head.
I can't remember the name they used after modifying them but maybe have a look at their website.
A friend of mine has one from suzukird and already fitted to the engine. I have pic on my phone but i don't know how to upload them.

_________________
1991-GTi: JE 75mm 11:1 pistons,Ported head, Single UD pulley (OCC),Sandros chip,Aluminium flywheel,3tech 222/365 cams, Cultus headers,Cultus IM,50mm tb,Crane cams adjustable cam gears,Apex suspension, 4.39fd GB.
1989-GTi: 3Tech 210/340 Cams,Cultus IM, B&G springs, TD04L turbo, Apexi SAFC, Suzukird UD pulley, Circuitse7en dual boost controller, AEM wideband, AEM water / meth injection kit, HKS bov.
2001-Altezza AS200: Stock.-sold
2003-EVO7 GT-A
Aruba "one happy island".

i have a few friends here at Portugal that modify the honda intake

_________________
http://www.cardomain.com/memberpage/811447

I think jard did a write up a few years back about the modifications needed for this swap.

_________________
1992 geo metro the perpetual project car
1986 suzuki samurai LWB aka beth
1994 suzuki sidekick 4 door

pat, that's what i was going to post, too. then i thought about it and couldn't remember if the ones that jardamuth built were for the turbo3 or twincam.

the ones that turbine tech built were way technical. he cut off the plenum, cut that in half, did a bunch of mill work, welded velocity stacks to the outlet for the runners, re-assembled and welded the plenum, and welded that to prepped runners and a flange.

as with everything jard builds they were a work of art and from what i heard, very, very useful for making power.

_________________
1991 Blue Geo Metro Convertible highly modified 1.0L Turbo3 5 spd. - 1991 Red Geo Metro Convertible customized with a Twincam 5 spd.

My Turbo3 Project
My Cardomain Page -Ol' Blue
My YouTube Channel
My Photo Gallery
SAAB Sonett II

Yes i remember this one. I think he also said it would be a very expensive mod.
Didn't he use the one from the H22 engine?

_________________
1991-GTi: JE 75mm 11:1 pistons,Ported head, Single UD pulley (OCC),Sandros chip,Aluminium flywheel,3tech 222/365 cams, Cultus headers,Cultus IM,50mm tb,Crane cams adjustable cam gears,Apex suspension, 4.39fd GB.
1989-GTi: 3Tech 210/340 Cams,Cultus IM, B&G springs, TD04L turbo, Apexi SAFC, Suzukird UD pulley, Circuitse7en dual boost controller, AEM wideband, AEM water / meth injection kit, HKS bov.
2001-Altezza AS200: Stock.-sold
2003-EVO7 GT-A
Aruba "one happy island".

the one in the pic it´s form a honda engine d16a8
but the ones from the b16 engines can also be adapted, besides they are even bigger
but the d16 is even bigger than the cultus manifold

_________________
http://www.cardomain.com/memberpage/811447

any further information?

just that it works, but needs a lot of work in the machining shop, cut and weld the stock flange ,into the honda intake, and the honda , has to be cutted to not it the hood, but it gives a extra more power along with the 58 mm honda throttle boby

_________________
http://www.cardomain.com/memberpage/811447

So basically u shortening the honda manifold to prevent it from hitting the hood, and you joining the flanges to the GTi flange? I have 60mm TB so i will use that Doesn't sound like much work but I know it could be tricky! How do the ports and runners line up?

Any more pics?

it was shortened were the throtle is or the rubber hose will not fit, because it will hit the tower on the shock,but it gives more power and responsevniss to the engine

_________________
http://www.cardomain.com/memberpage/811447

Doubt i can do this, now watching that its unlikely it will clear my brake cylinder. Right hand drive

Post pics of your engine

_________________
http://www.cardomain.com/memberpage/811447

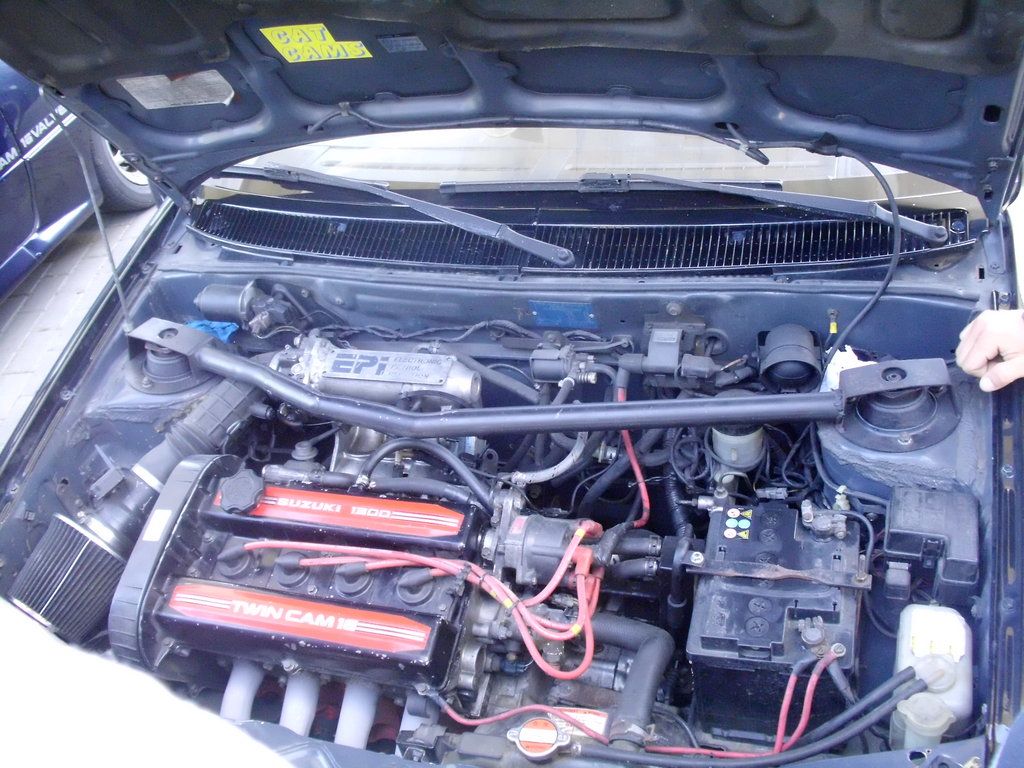

Not the most recent pic, but this is basically it.....

nice engine

_________________
http://www.cardomain.com/memberpage/811447

you can always get a spare intake oem manifold, cut it in the runners and weld a large aluminum tube from other cars intake, such as hondas or nissans and weld the stock throtle flange.....................or weld a large aluminum tube, like say...........90 mm or 110mm (reminding the cultus intake )

_________________
http://www.cardomain.com/memberpage/811447

Thanks for the input and the complements on the engine bay!

that´s why we are here for to help each other

_________________
http://www.cardomain.com/memberpage/811447

Is there any proof this flows any better than a cultus manifold?

_________________

my friend took me on a ride on that car
and on another one with cultus manifold
diffs is huge , honda modified wins
both had honda pistons on the g13b engine

_________________
