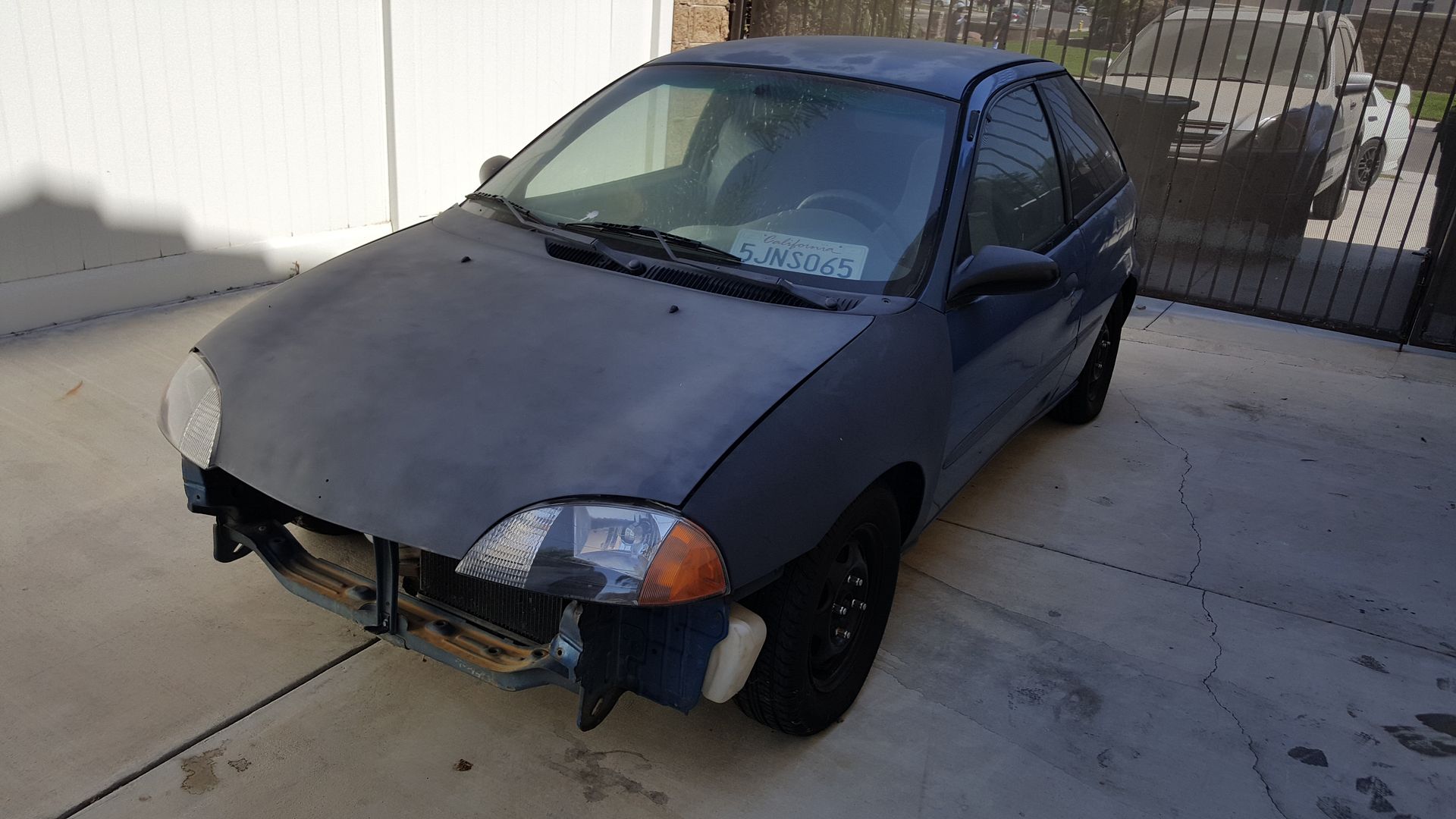

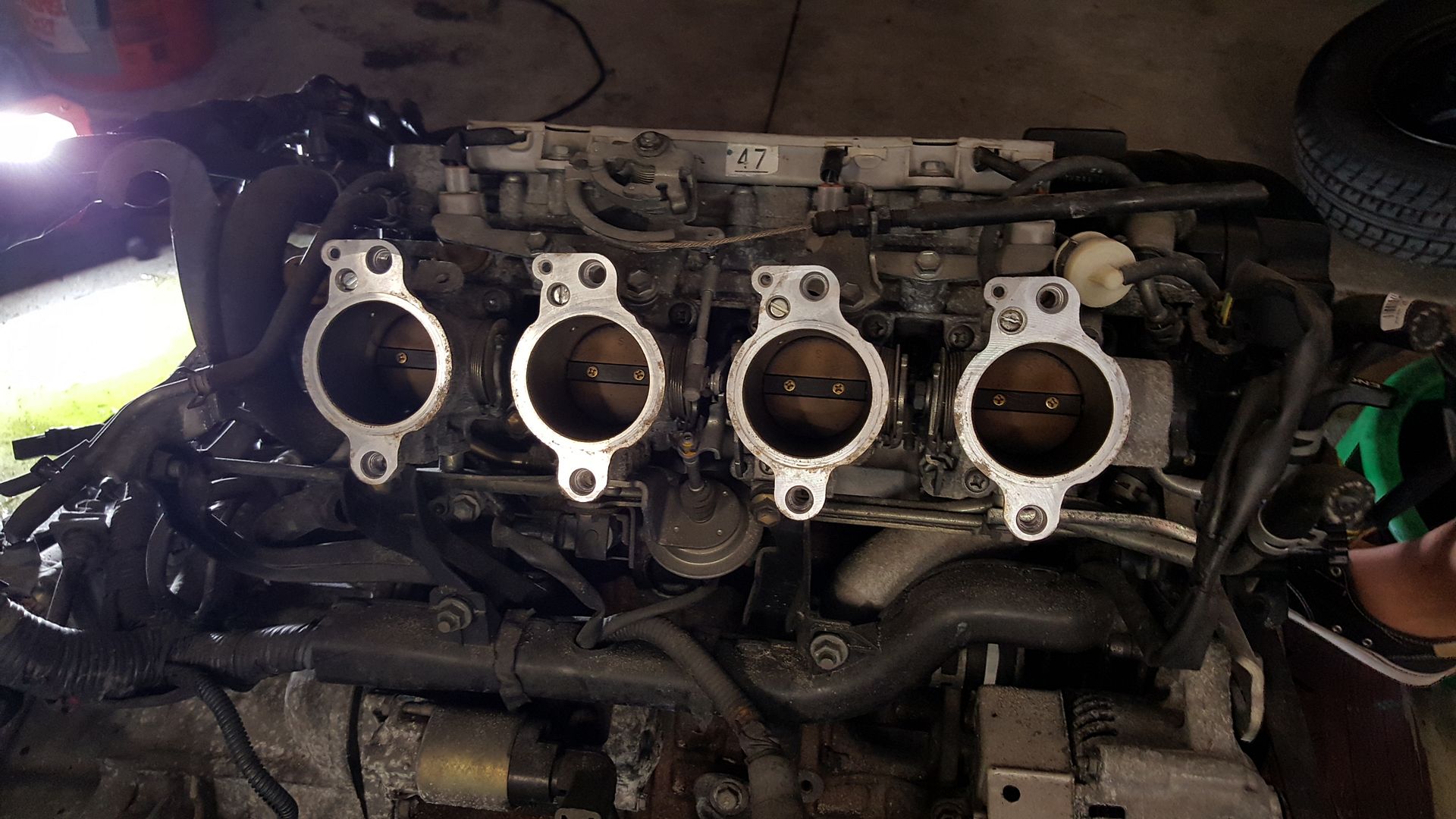

Hey guys, I have here the first MK5? that will be equipped with a Toyota 4age blacktop 20 valve.

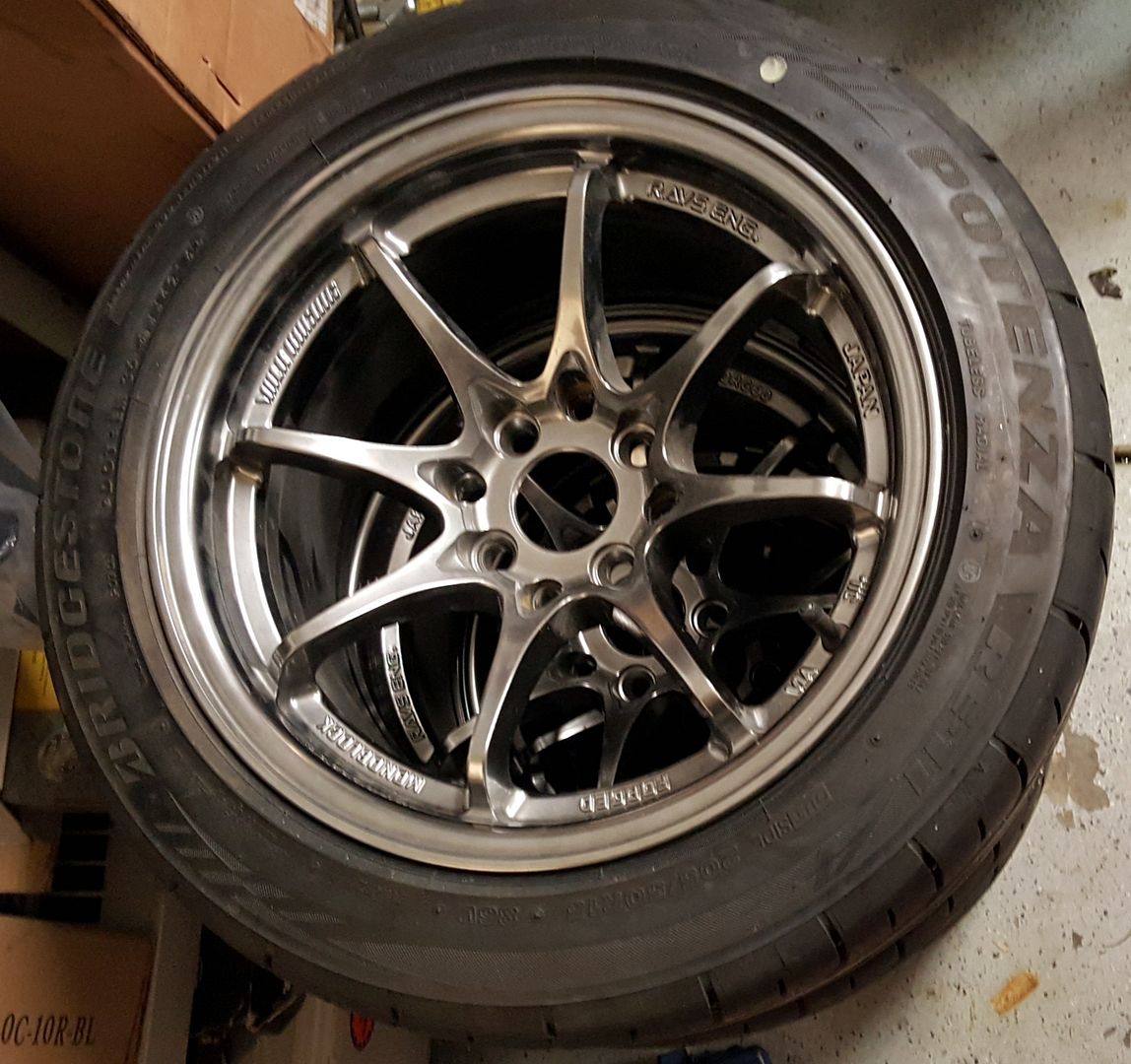

Currently has S13 coilovers from J2 in it. Doesn't have the shock and spring setup in the rear anymore. Will be rolling on some JNC wheels wrapped with Bridgestone Potenza RE11's

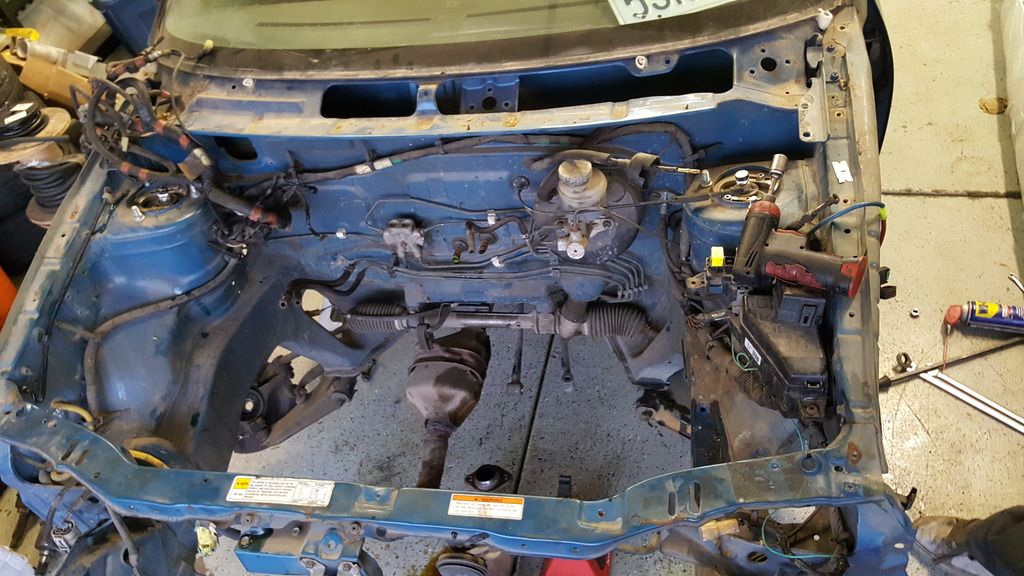

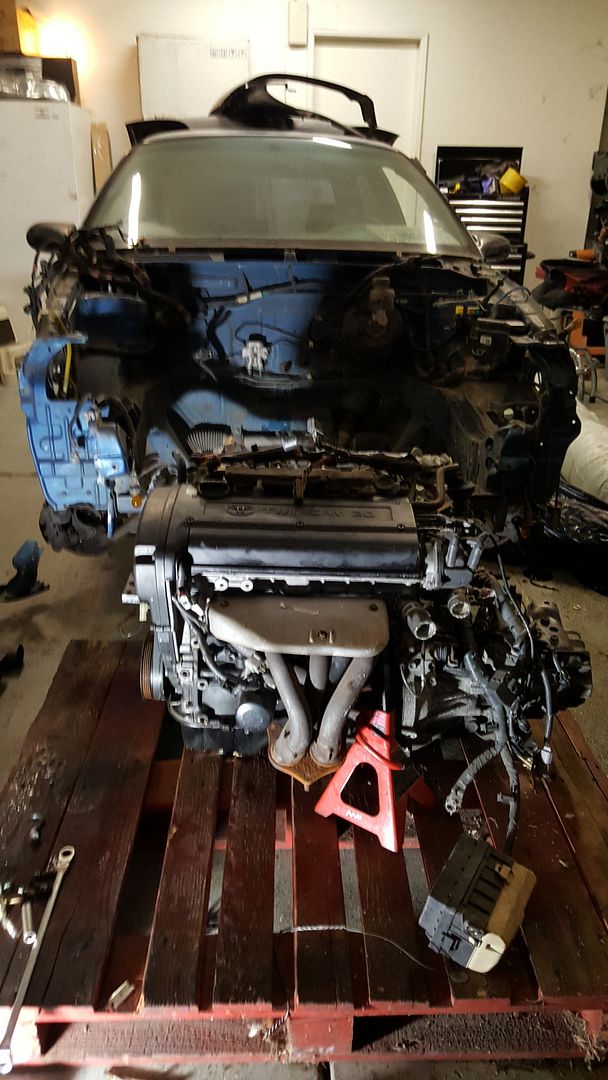

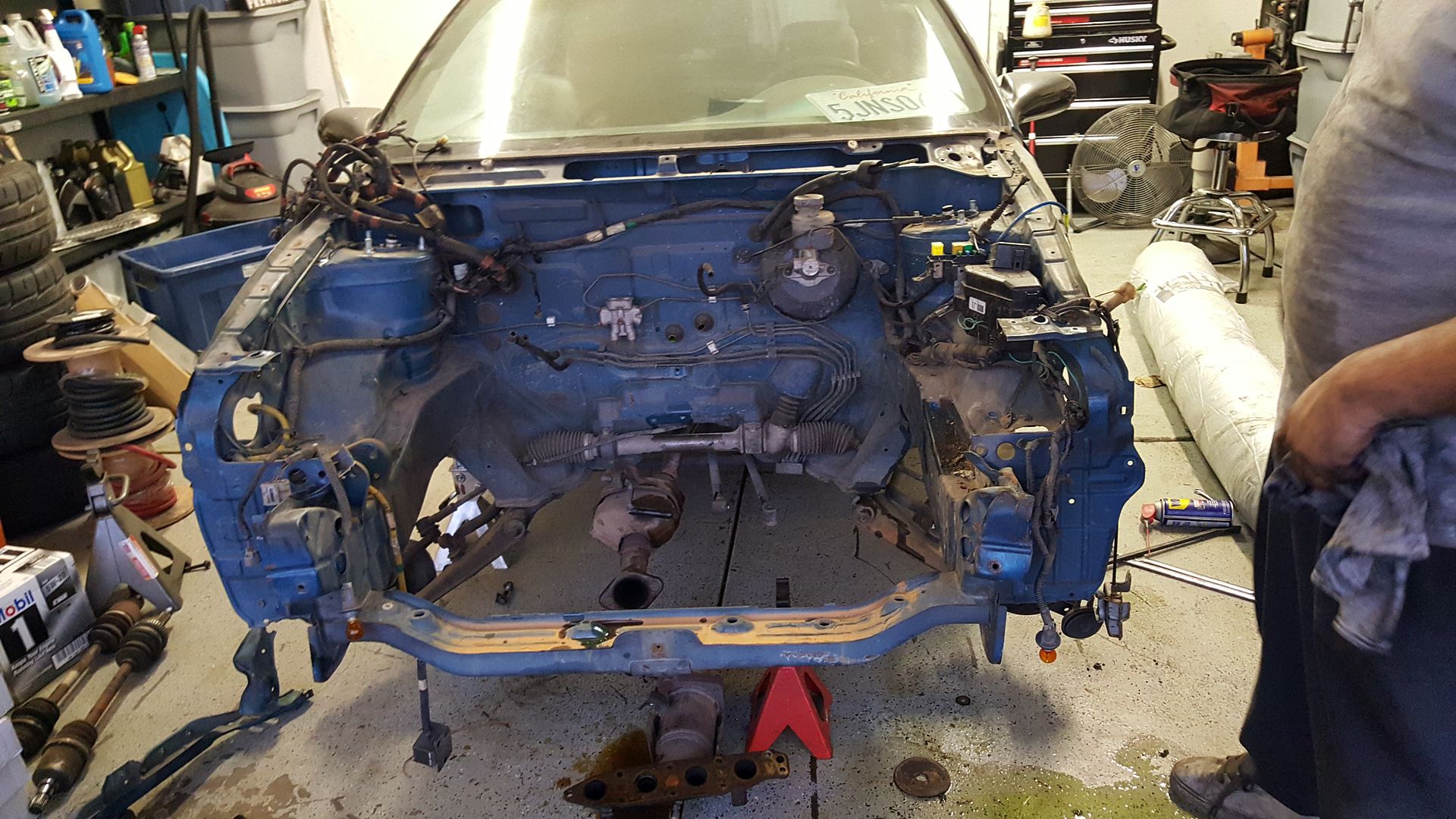

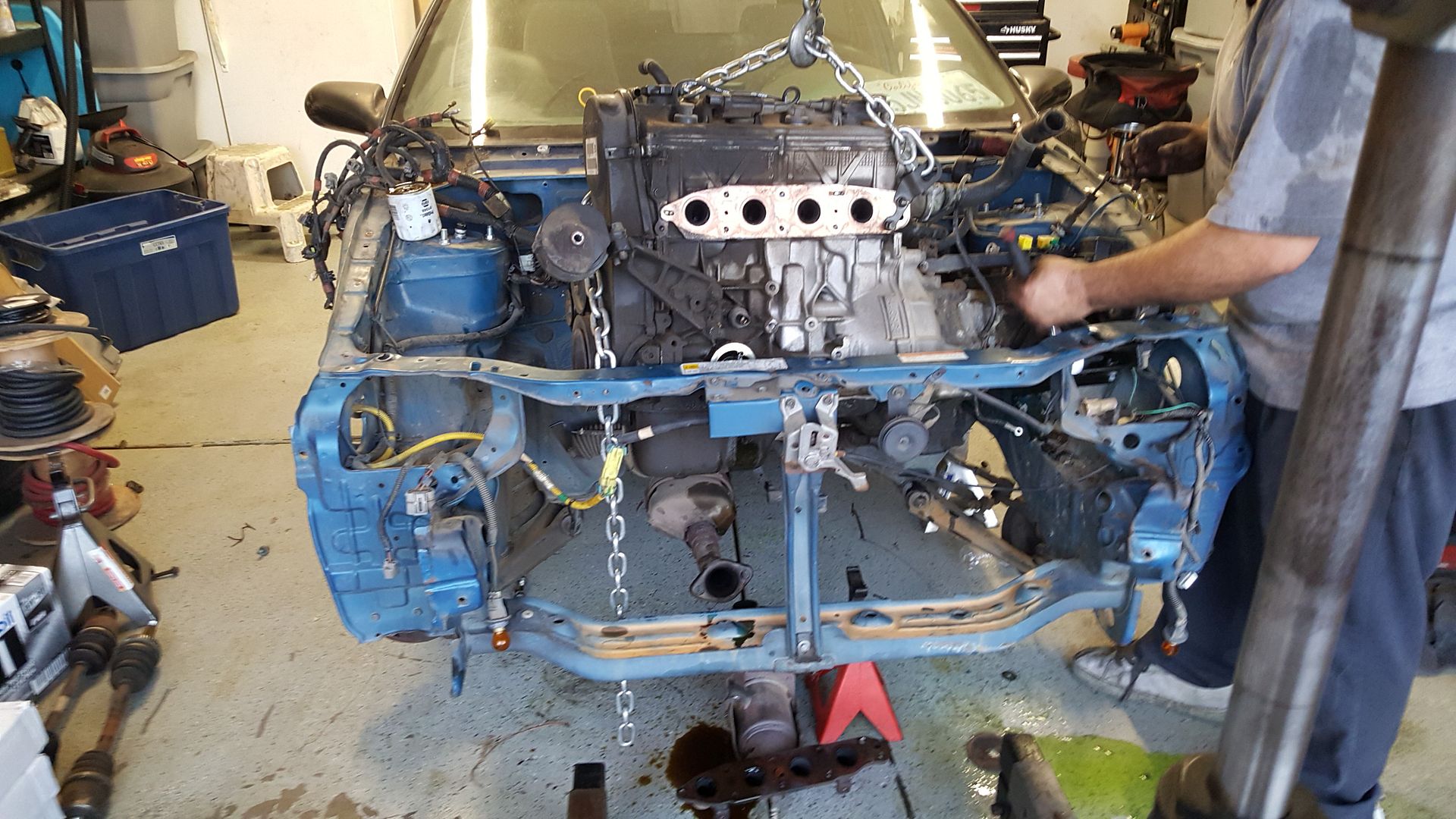

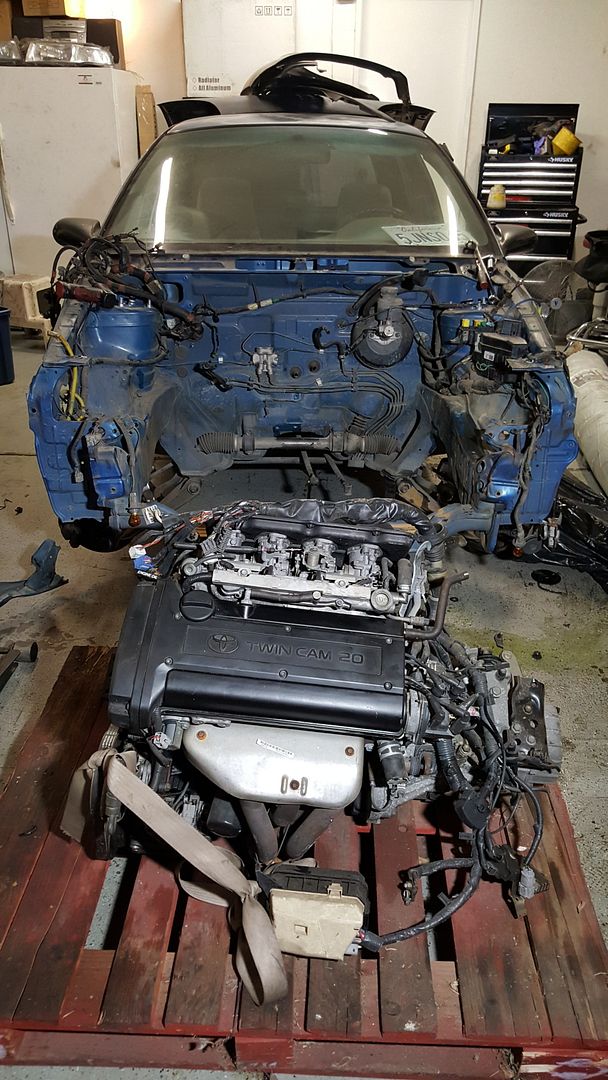

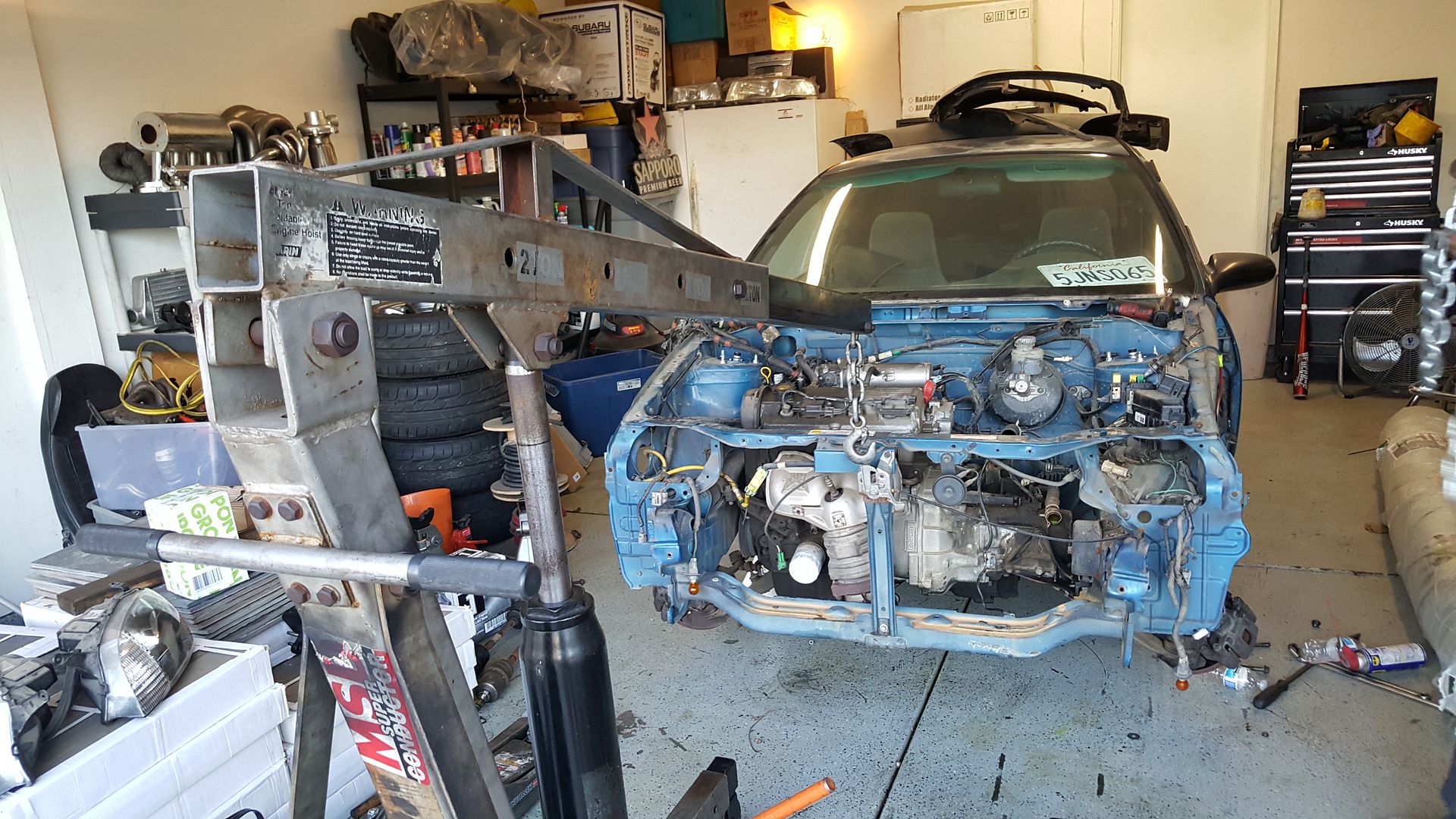

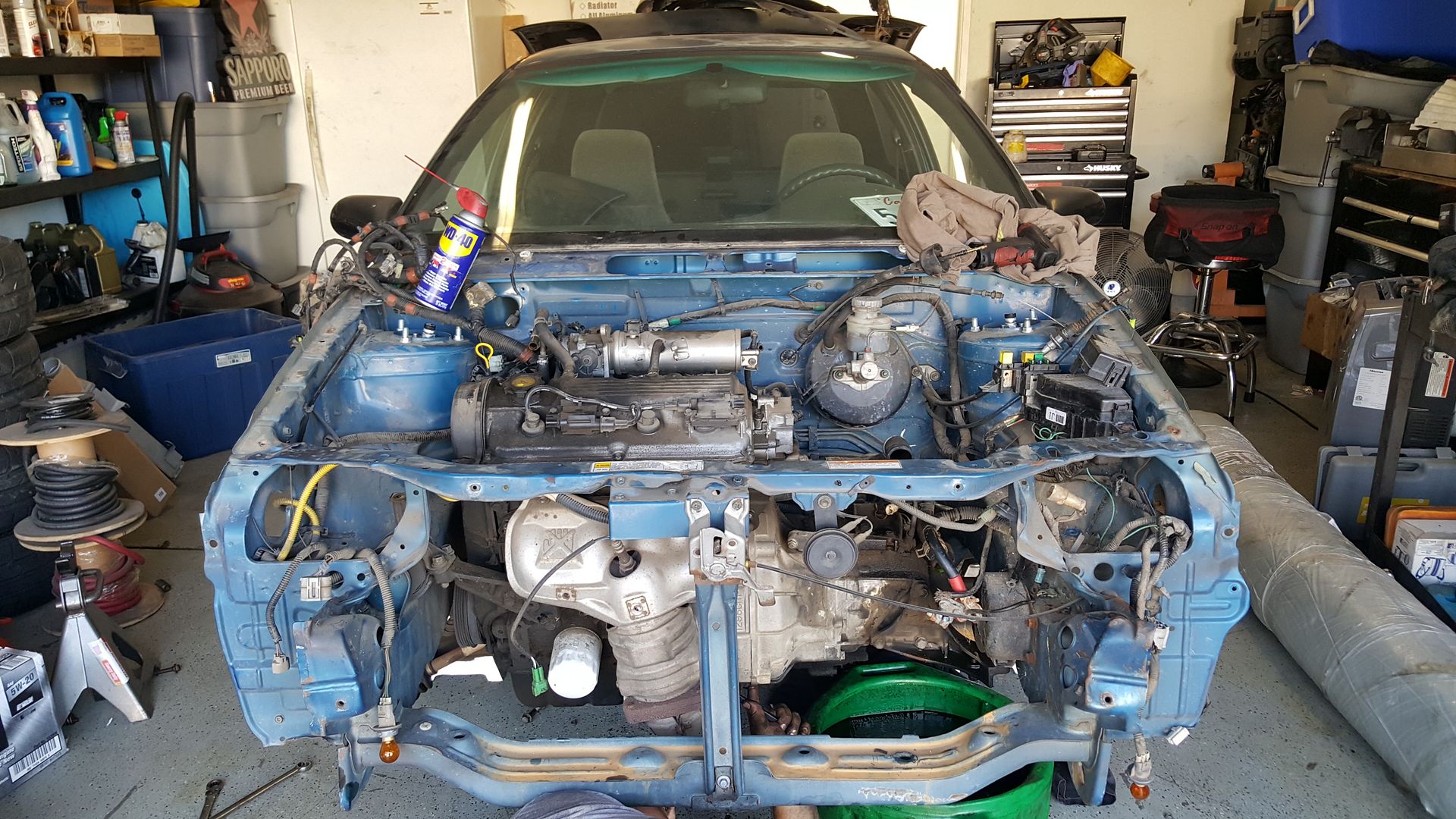

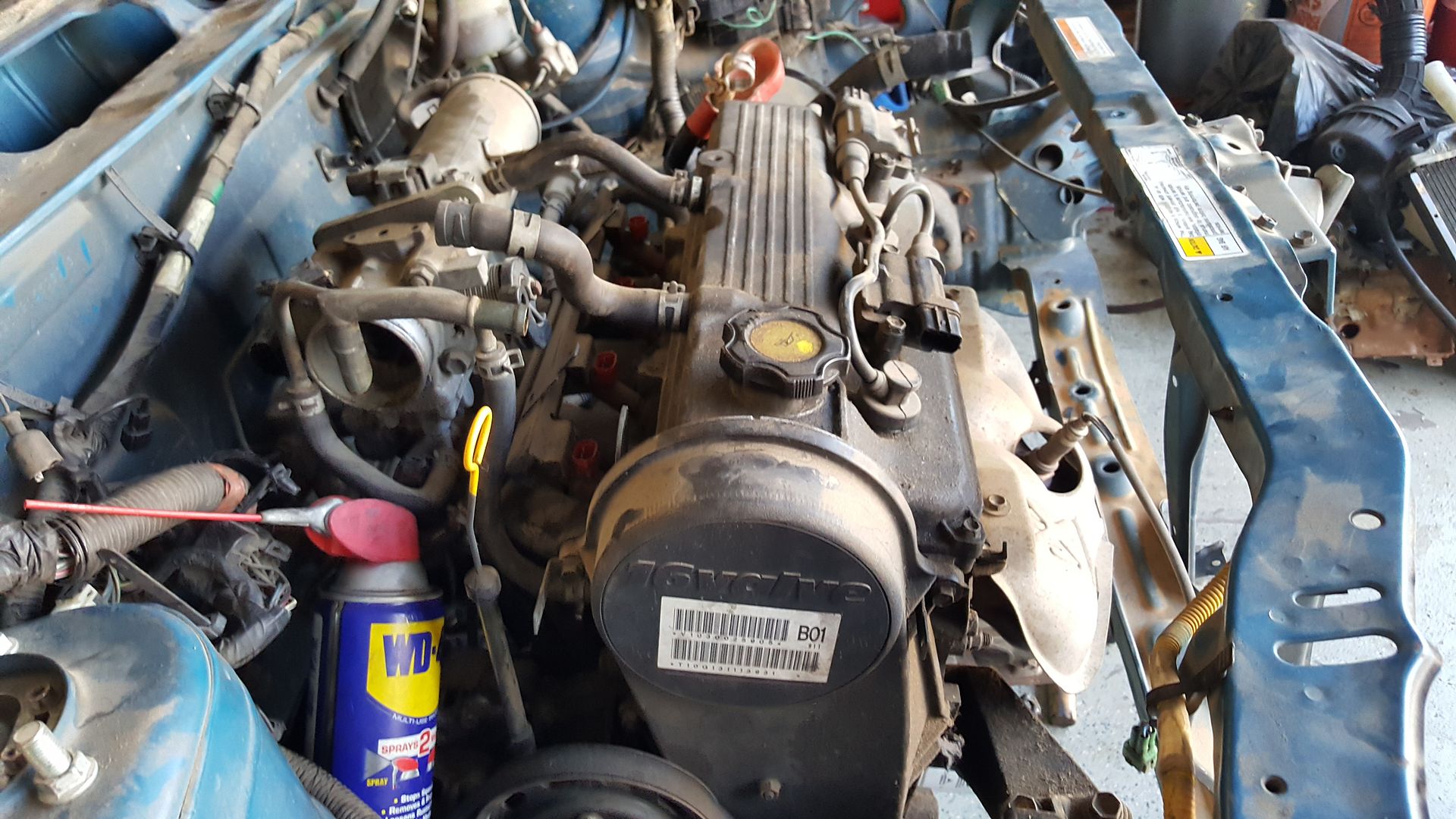

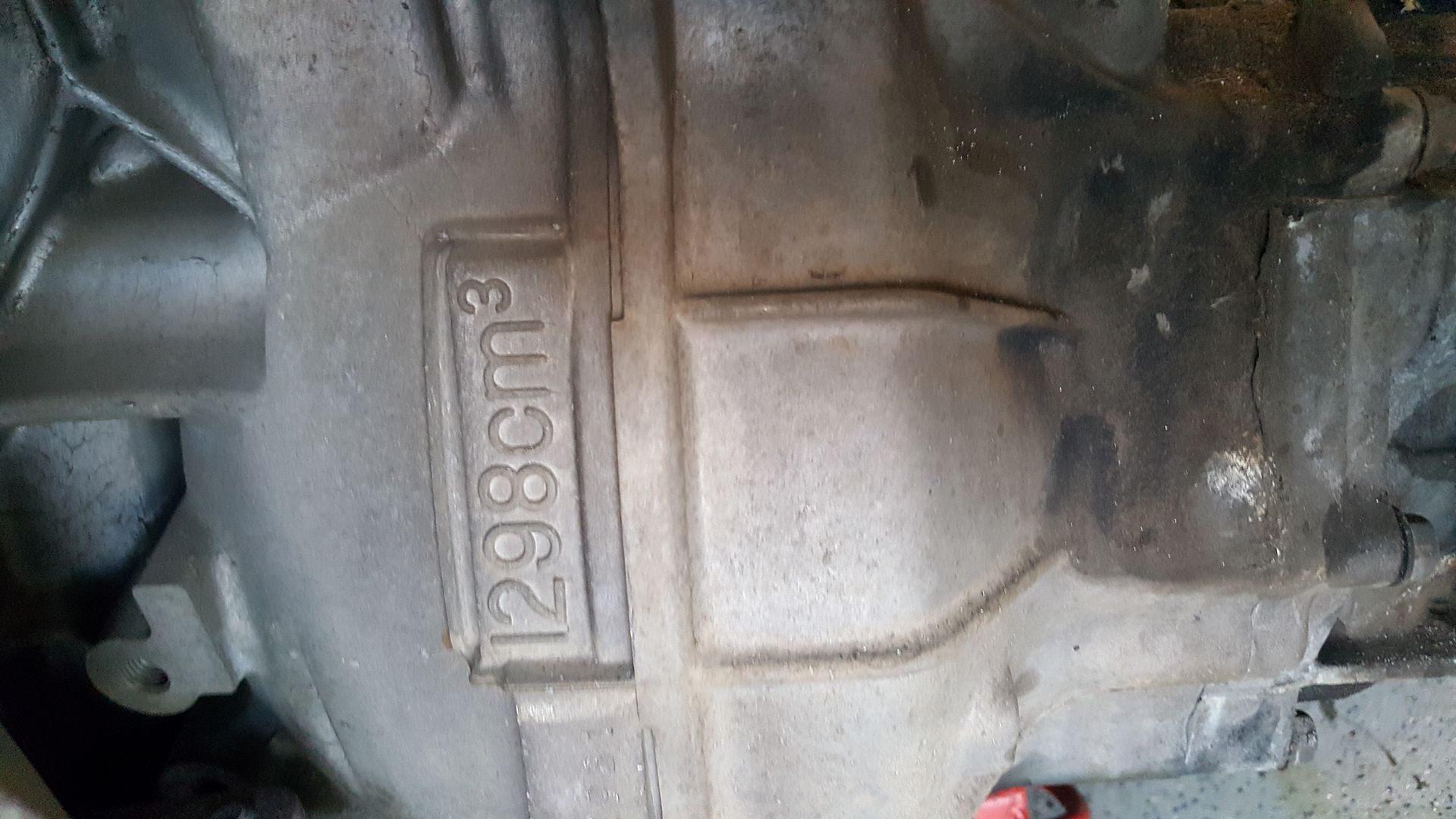

Started the project this week. Dropped the crappy 1.3 engine last night and test fitted the 4age.


[URL=http://s1287.photobucket.com/user/hairymonkey019/media/Anything%20Car%20Related/HiN/Swift/62b8bdeb-bf05-4ae7-a5ab-c14eb9b10a29_zpsf9c0fabg.jpg.html]


[/URL]

Cool make sure to post lost of updates and pics

_________________
___________________
89 Swift gti
Modified B16 P29 75mm pistons,13:1CR, cultus intake, genie header, genie exhaust, 3tech head, 3tech 222/365 cams, 3tech UD pulley, megasquirt 2.0, 60mm throttle body, Aluminum flywheel

Oh, I will

Also, if anyone can tell me where to get a cheap steering wheel hub for the thing, that would be awesome. I want to ditch the crappy steering wheel and airbag from the car, or if anyone has a used one that's compatible with the car, even better. The idea is a budget build, but still fun af to swing around.

would this work?

http://www.ebay.com/itm/Kylin-STEERING- ... s1&vxp=mtr

Interesting project!

S13 coilover as in nissan silvia?

_________________
1991-GTi: JE 75mm 11:1 pistons,Ported head, Single UD pulley (OCC),Sandros chip,Aluminium flywheel,3tech 222/365 cams, Cultus headers,Cultus IM,50mm tb,Crane cams adjustable cam gears,Apex suspension, 4.39fd GB.
1989-GTi: 3Tech 210/340 Cams,Cultus IM, B&G springs, TD04L turbo, Apexi SAFC, Suzukird UD pulley, Circuitse7en dual boost controller, AEM wideband, AEM water / meth injection kit, HKS bov.
2001-Altezza AS200: Stock.-sold
2003-EVO7 GT-A
Aruba "one happy island".

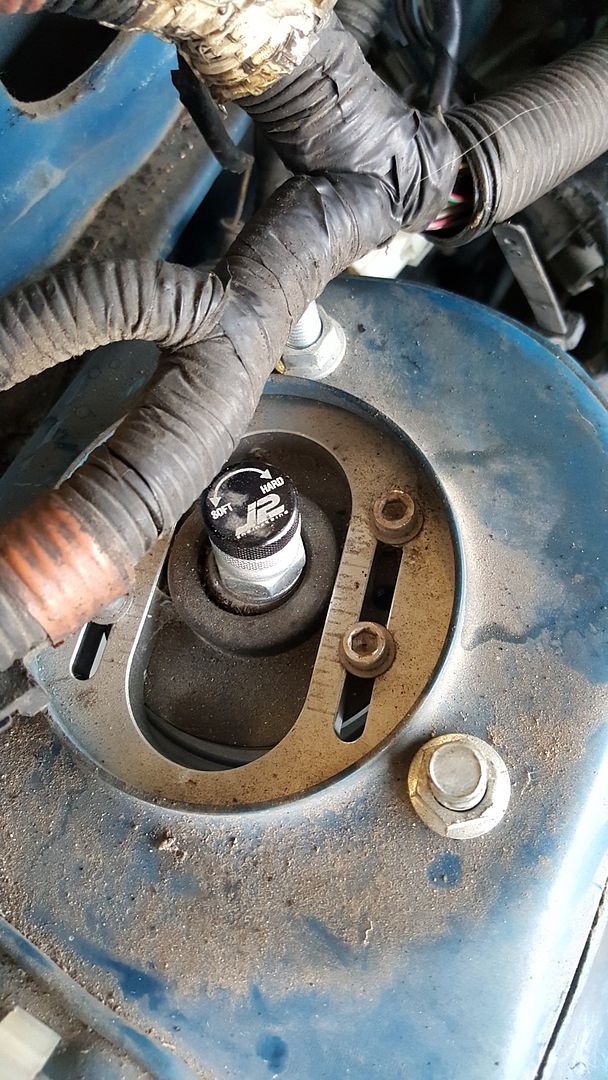

Yes sir! Modified the car a bit and the coilover mounting brackets.

Been done. first one posted with a 4age 20 valve was posted 2010. But its cool swap. It was on http://WWW.TUNEDCARS.ORG i remember it was on a 1997 swift GT.

Awesome build. Keep up the pictures and the narrative. These seem to work well with us monkeys. Just remember to feed us every now and then.



What in the hell is that? Australia?

_________________



An eye for an eye will leave the whole world blind.

1989 Suzuki Swift GTi: Red "My PocketRocket"
1989 Suzuki Swift GTi: White (Being resurrected)
1996 Geo Metro (Stocker)
1999 Suzuki 1.6 Esteem (Baleno) Wagon (Sleeper creeper)

Pics, or it didn't happen.

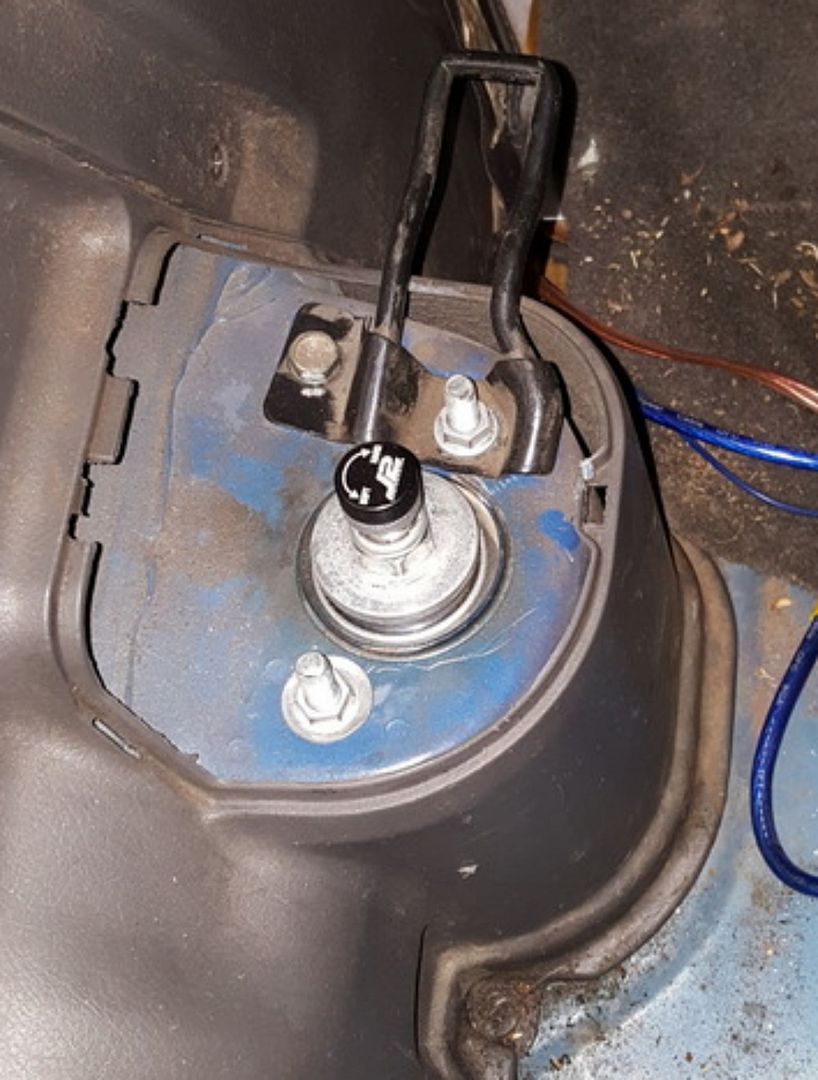

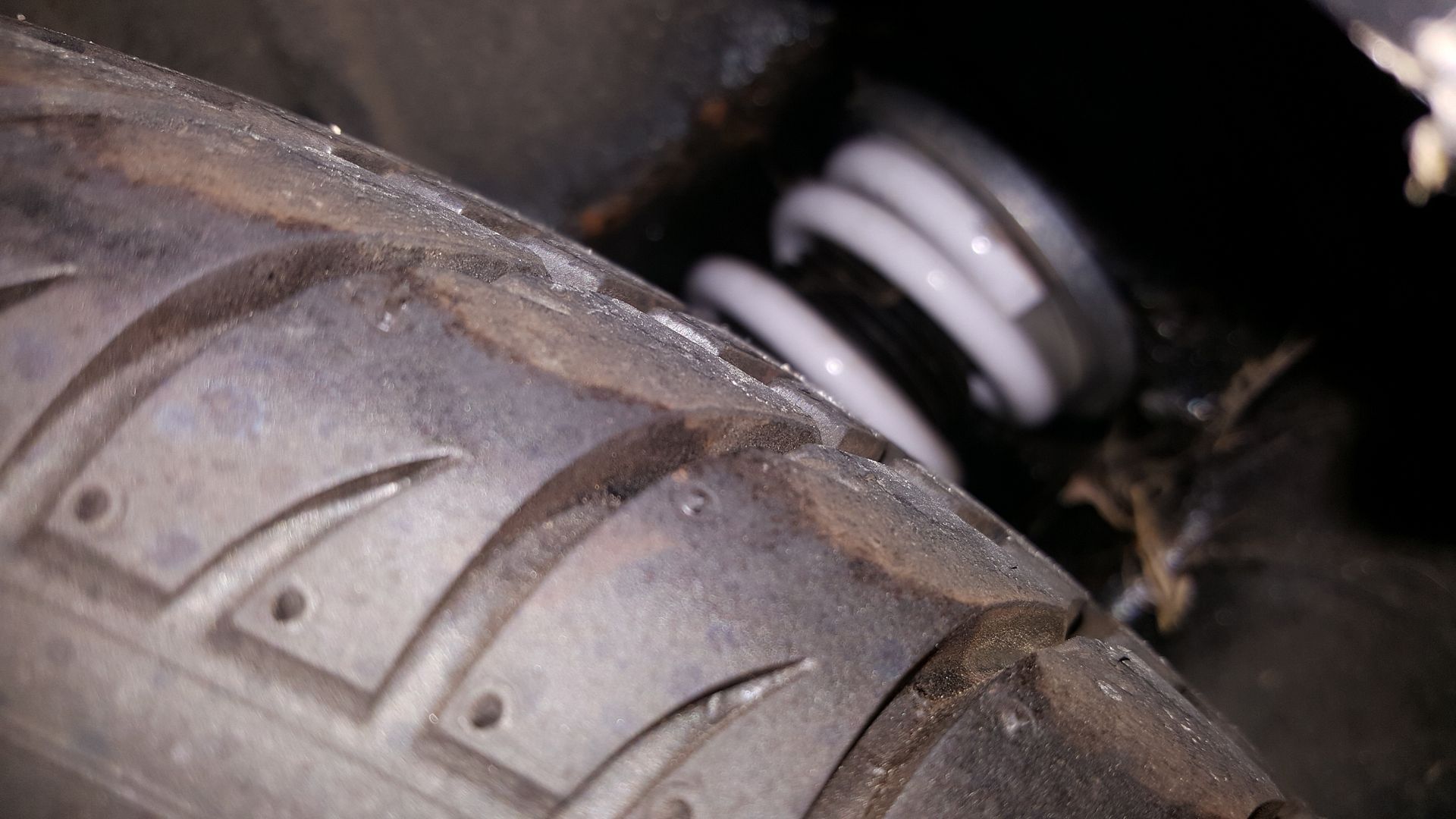

Picture of rear suspension. This thing is stiff af with these coilovers.

Awesome.
Can you go into the details a bit of what you meant by modifiying the car? Maybe these can be made to fit the mk2 mk3 chassis.
I don't think I have seen this before.

Thank you.

_________________
1991-GTi: JE 75mm 11:1 pistons,Ported head, Single UD pulley (OCC),Sandros chip,Aluminium flywheel,3tech 222/365 cams, Cultus headers,Cultus IM,50mm tb,Crane cams adjustable cam gears,Apex suspension, 4.39fd GB.
1989-GTi: 3Tech 210/340 Cams,Cultus IM, B&G springs, TD04L turbo, Apexi SAFC, Suzukird UD pulley, Circuitse7en dual boost controller, AEM wideband, AEM water / meth injection kit, HKS bov.
2001-Altezza AS200: Stock.-sold
2003-EVO7 GT-A
Aruba "one happy island".

The same day we pulled the shitty 1.3 out, I was able to find a buyer for that motor and trans lol.

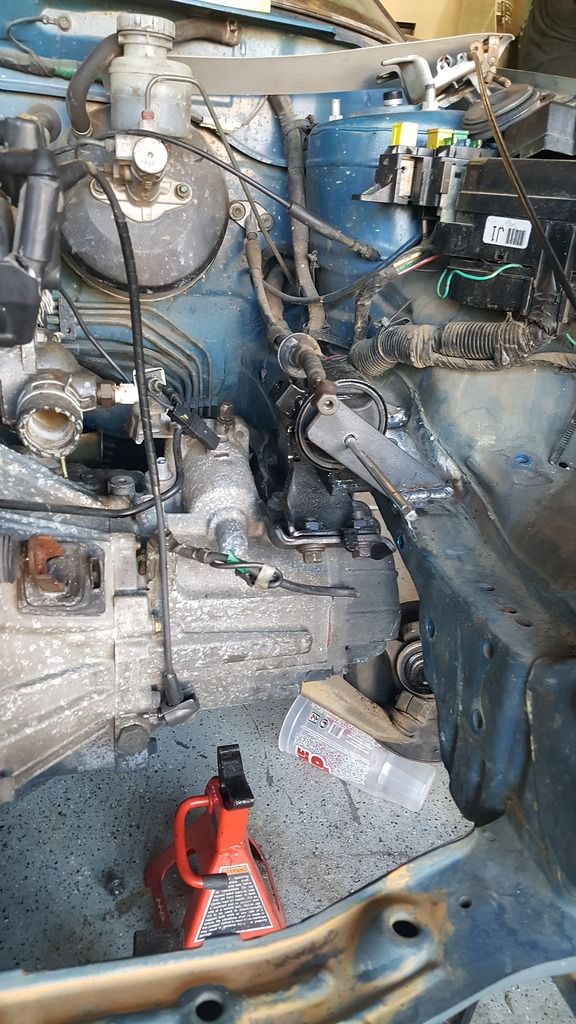

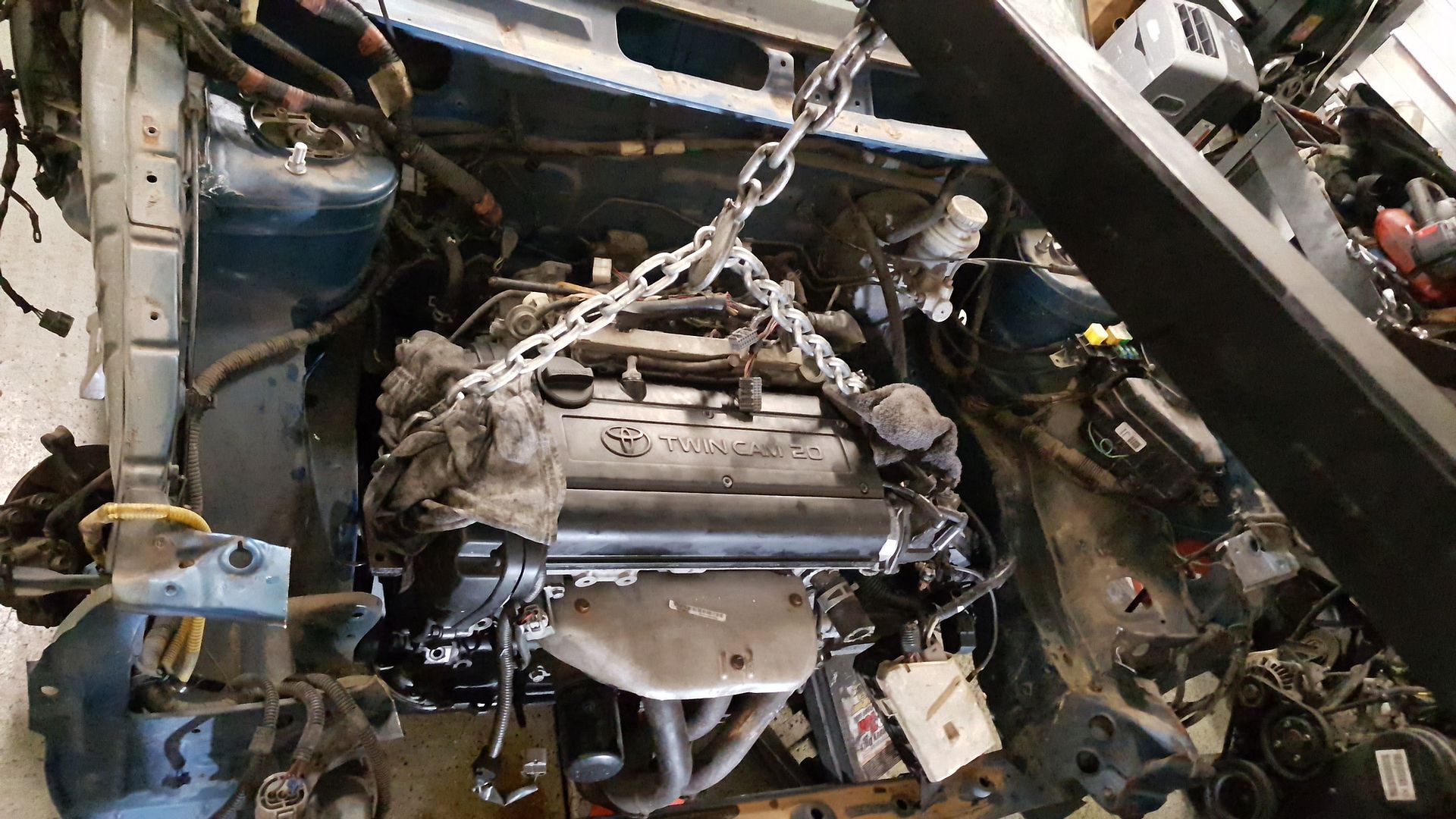

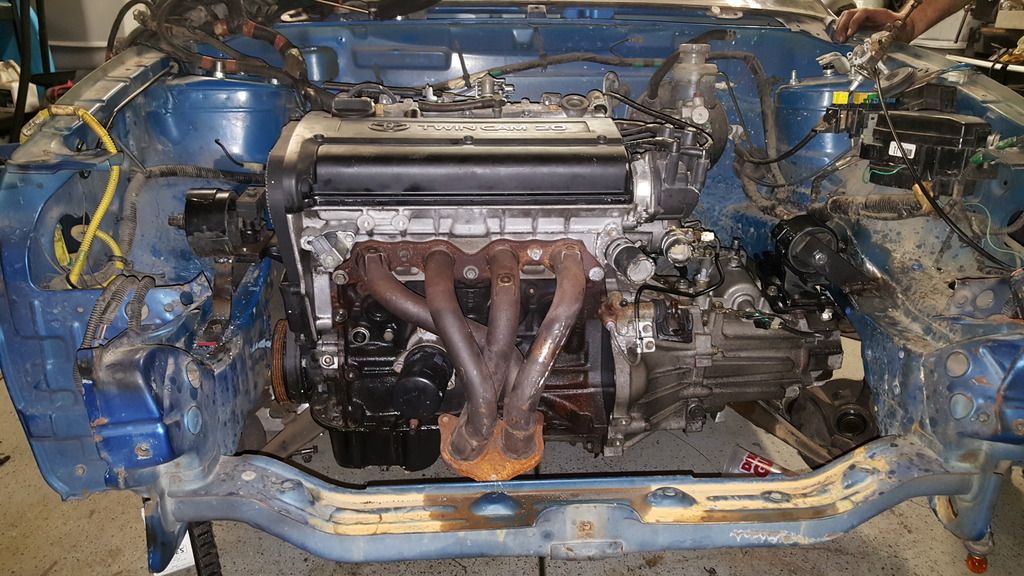

Engine can now sit in the bay without a jack or jackstands!!!! It was only supposed to take a couple hours, but took the whole day haha. This thing will be VERY EASY to service.
Now, all the measuring and tedious work begins.

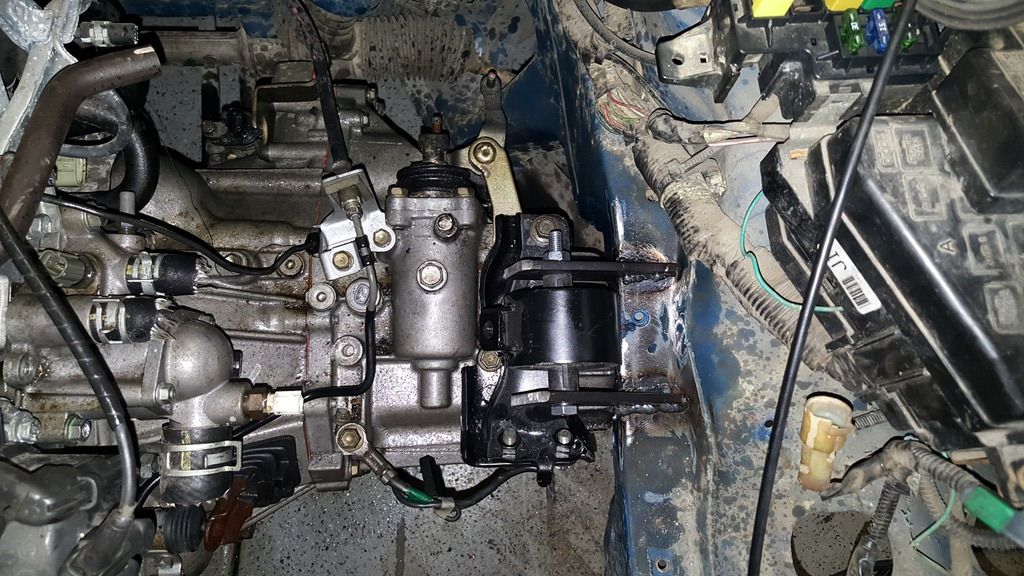

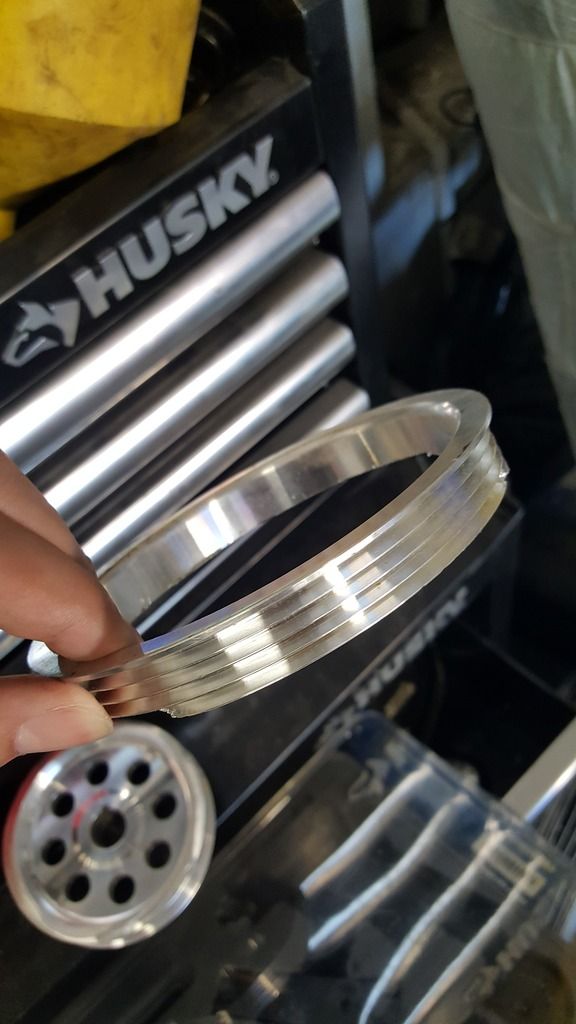

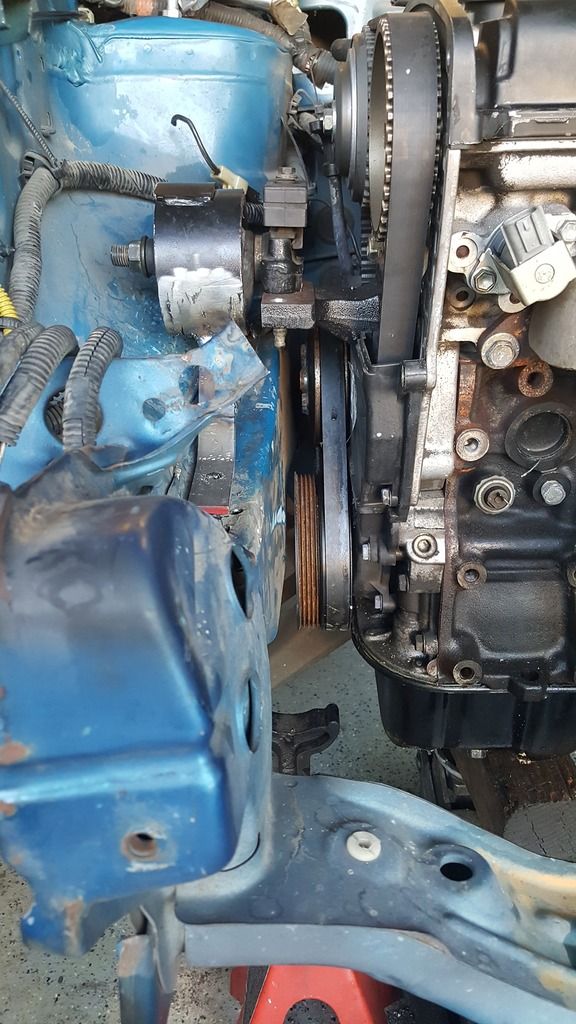

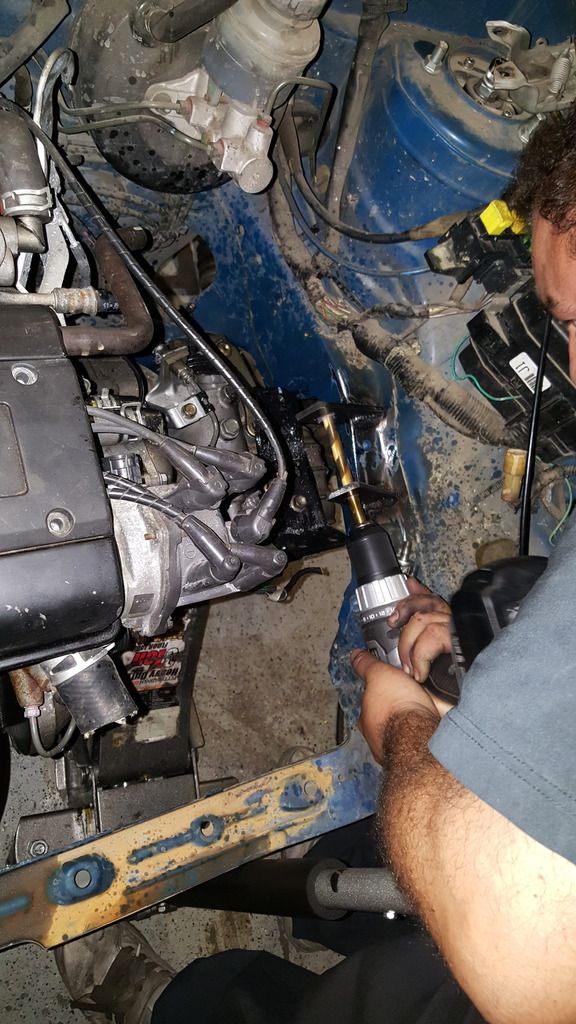

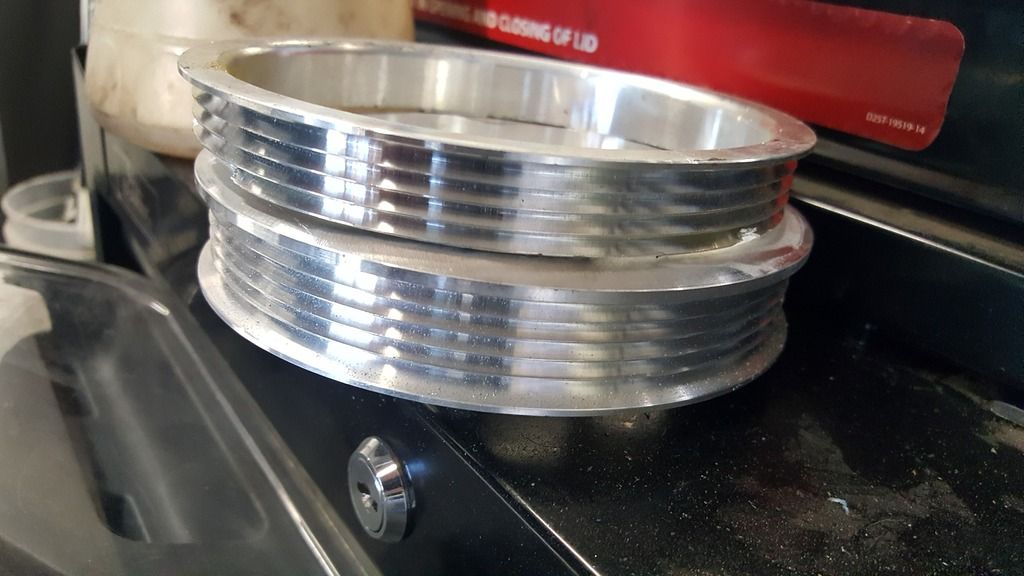

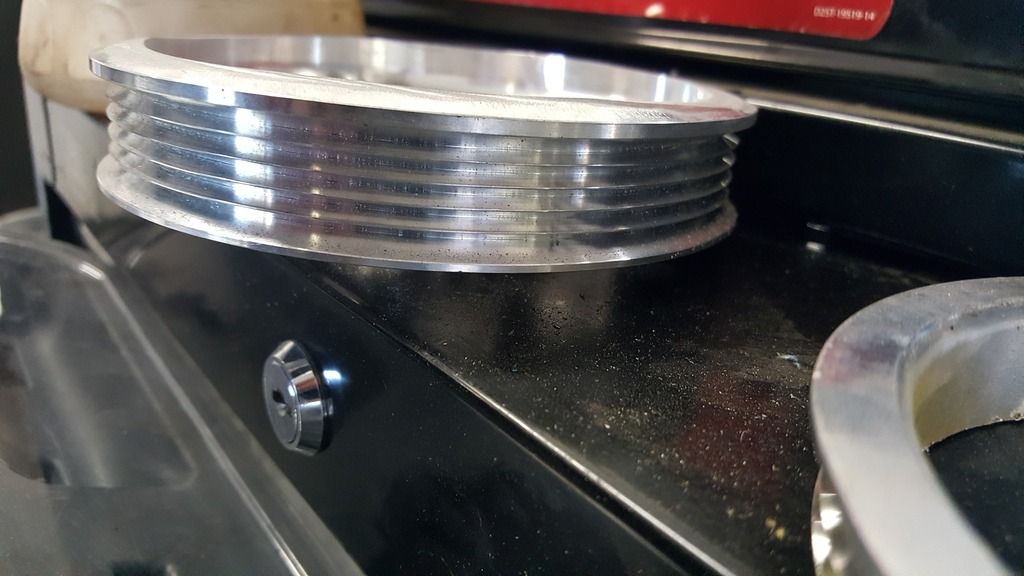

Pictures include the sawed off light weight crank pulley, modified motor mounts, and good stuff.
Next week we should be test starting it before doing all the measuring.

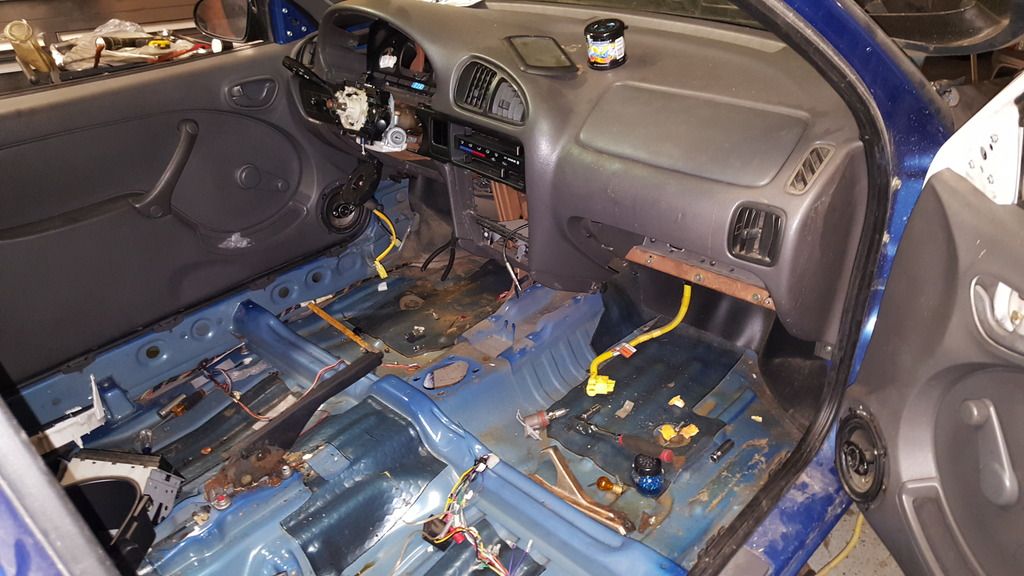

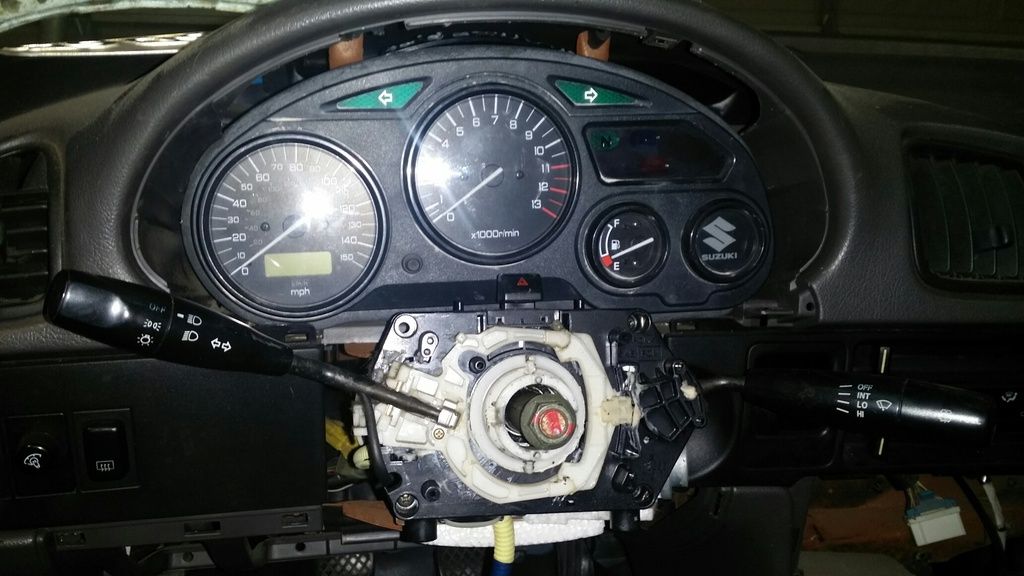

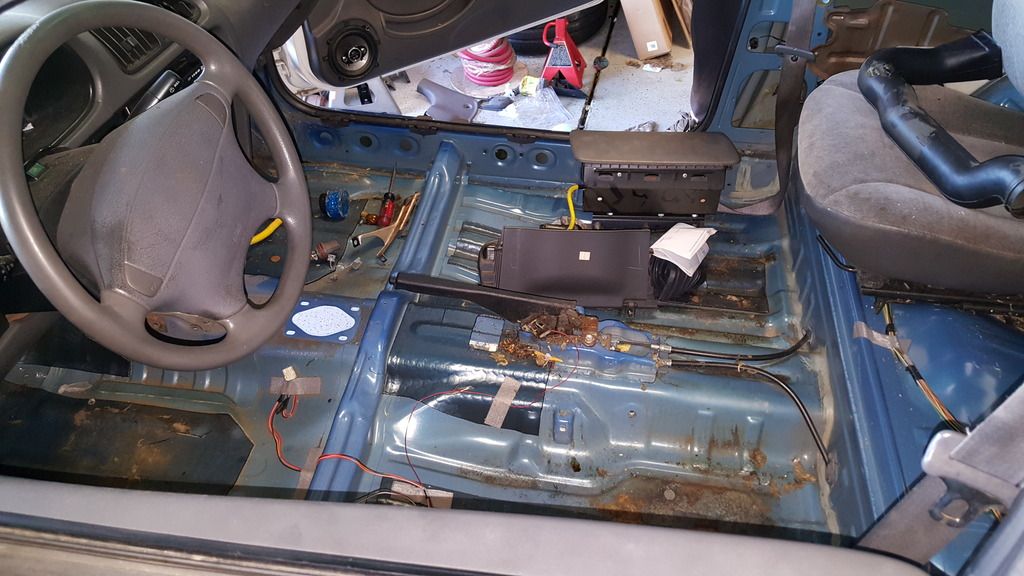

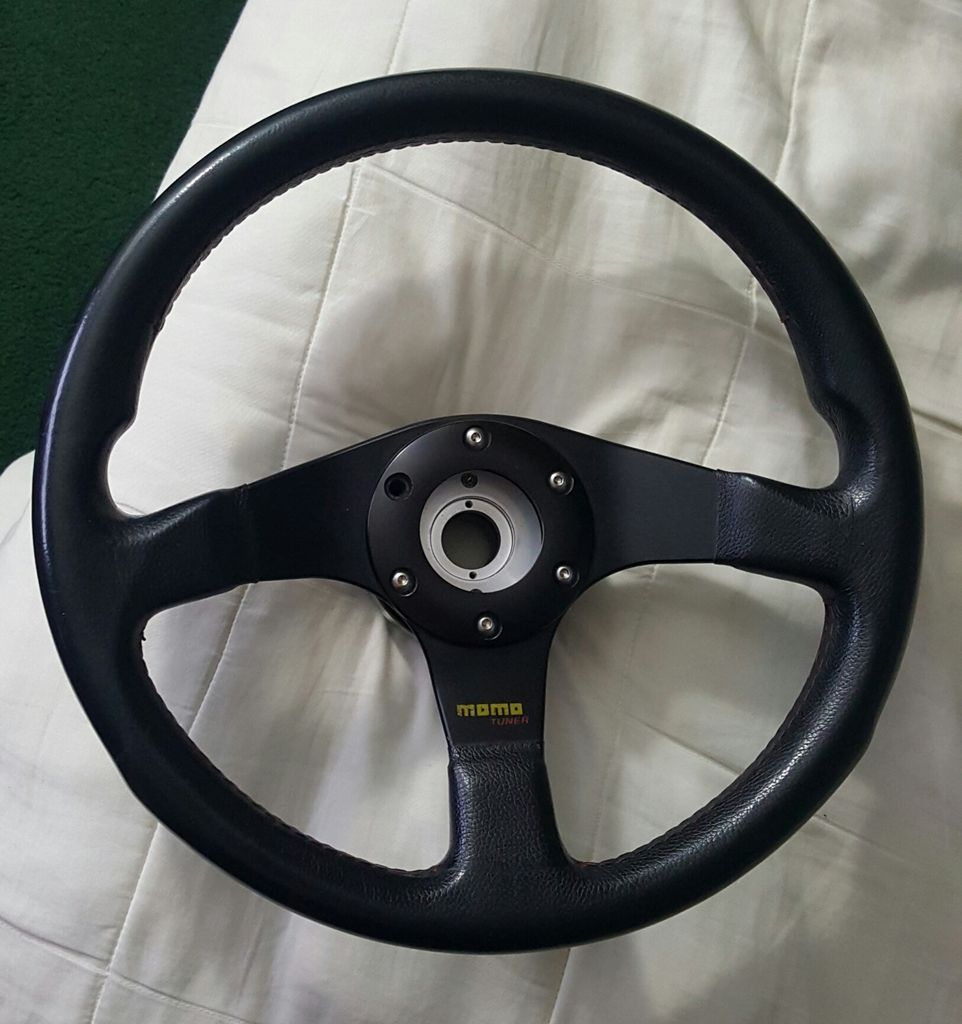

Partially gutted and have a Momo steering wheel and NRG quick release ready to be installed. Waiting on hub to come in.

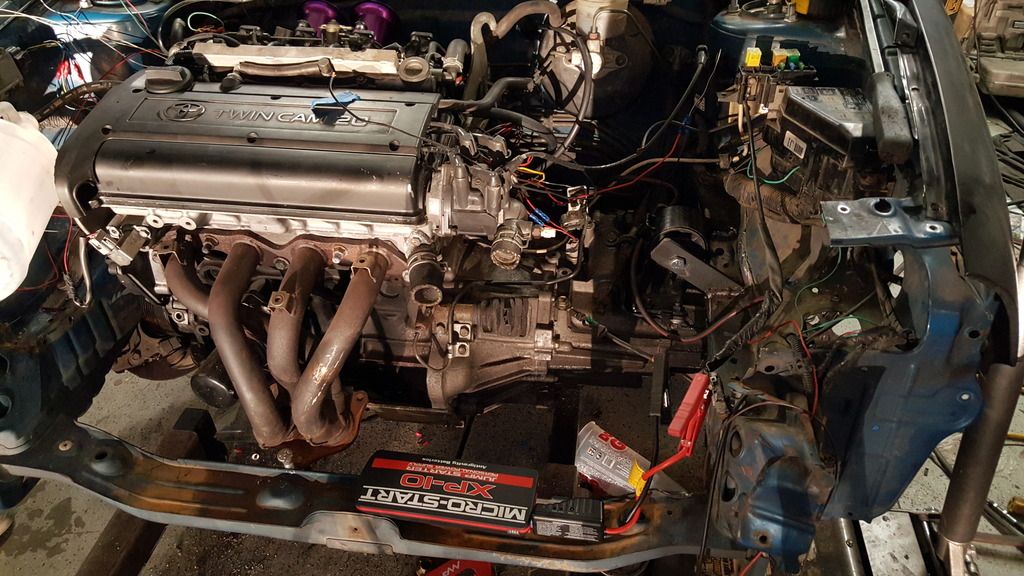

Finally got the car started!
All down hill from here. My boy was able to eliminate what wasn't needed off the harnesses, got the shifter to work, shortened and lengthened every single wire. All the plugs and wiring has been figured out. Everything at this point will be mechanical, cutting, and welding things.





https://www.youtube.com/watch?v=-oTht2btXZ0

Nice... you never stop to impressive me! A lot of things are new to me!


btw the coolant (and air system too) should be installing and running properly... or it made me cringe.

_________________
sorry bout my bad english

not sure why it isn't showing up. why does link not show as an actual video???
https://www.youtube.com/watch?v=-oTht2btXZ0

It works for me.

_________________
sorry bout my bad english

Very impressive work so far.

I am very interested when you finish to hear how well your engine and transmission mounts perform, as the orientation of the left and right mounts are exactly 90 degrees different than the stock Suzuki mount orientation. I've always wondered whether mount setup can make a difference in controlling torque steer.

I don't think he will find out . Those will not last long enough for that , especially that transmission mount.

The mount orientation is the same as Toyota's original configuration. Whdo you think it wont be strong enough in this Suzuki? Not enough gusseting on the frame rails maybe??

Well , why would manufacturers make such elaborate engine mounts brackets if couple of lengths of Home Depot mild steel with couple of not so good butt welds stuck to sheet metal would work

Link to motor mounts for 4age to Suzuki Swift body.

Updates:
I don't have pictures of the shifter mount, but it was raised about 4"-5" and can be unbolted from the car to drop it back to stock position. (everything on this car will be made to be removable and easily accessible.

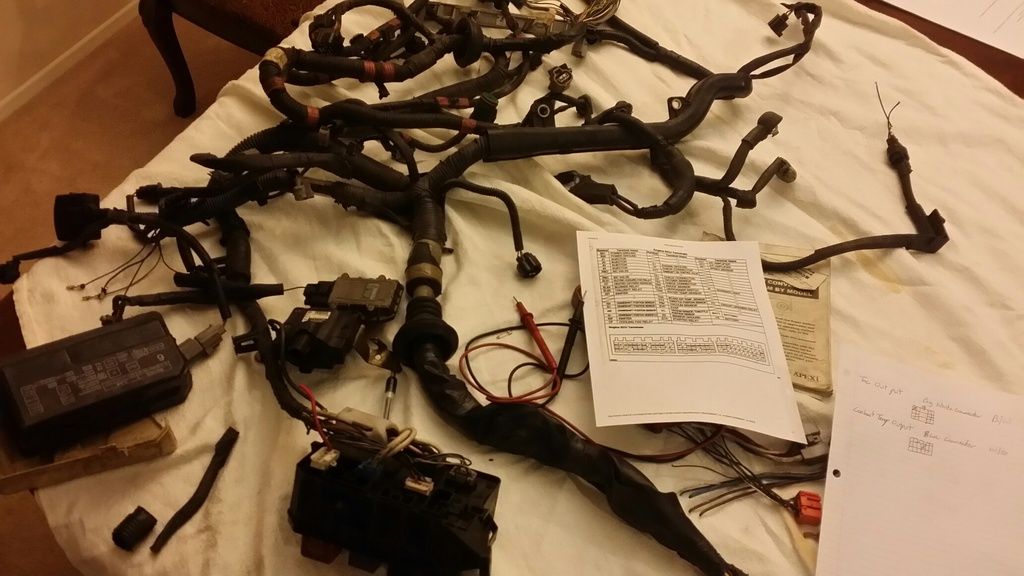

Finally the 2 wiring harnesses have been combine, shortened, lengthened, and loomed together. Unnecessary connectors were also removed, so the harness looks factory as it should.
adult image
free upload
picture share
image hosting

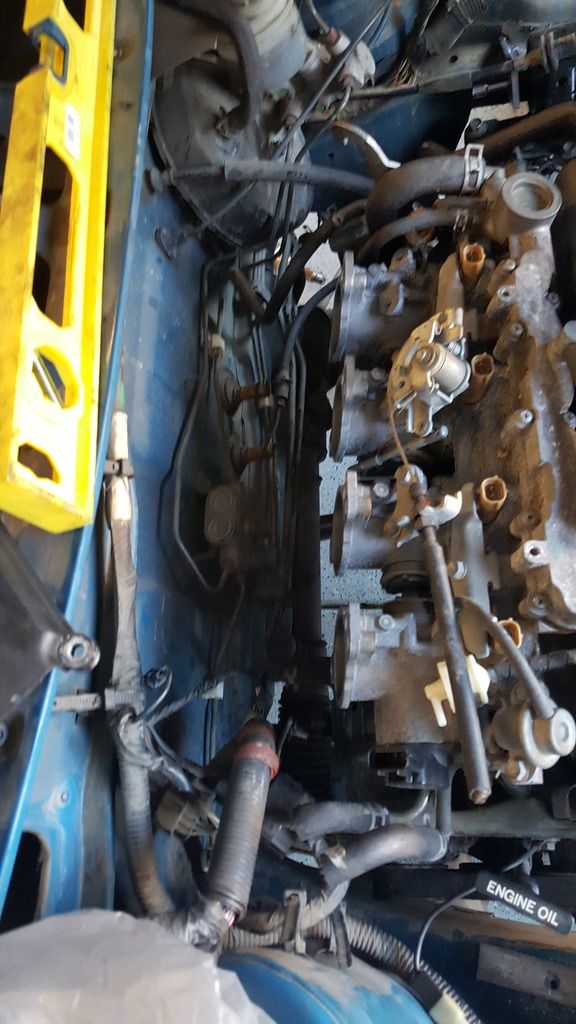

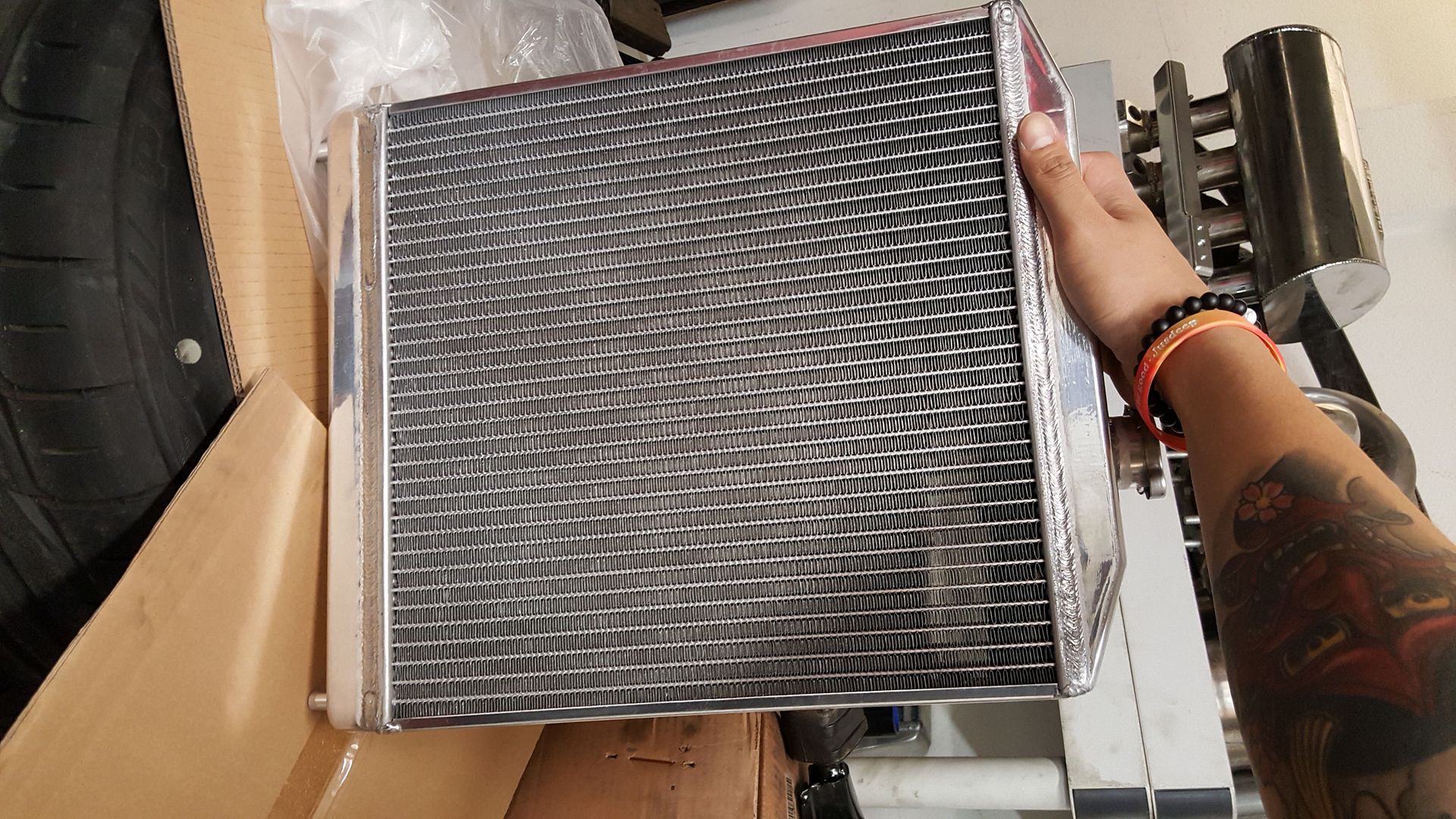

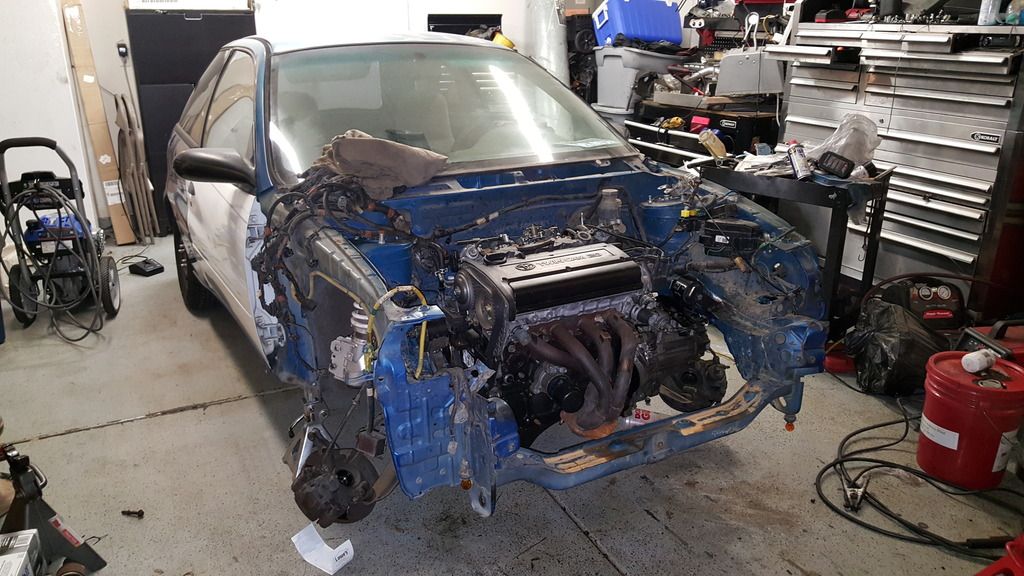

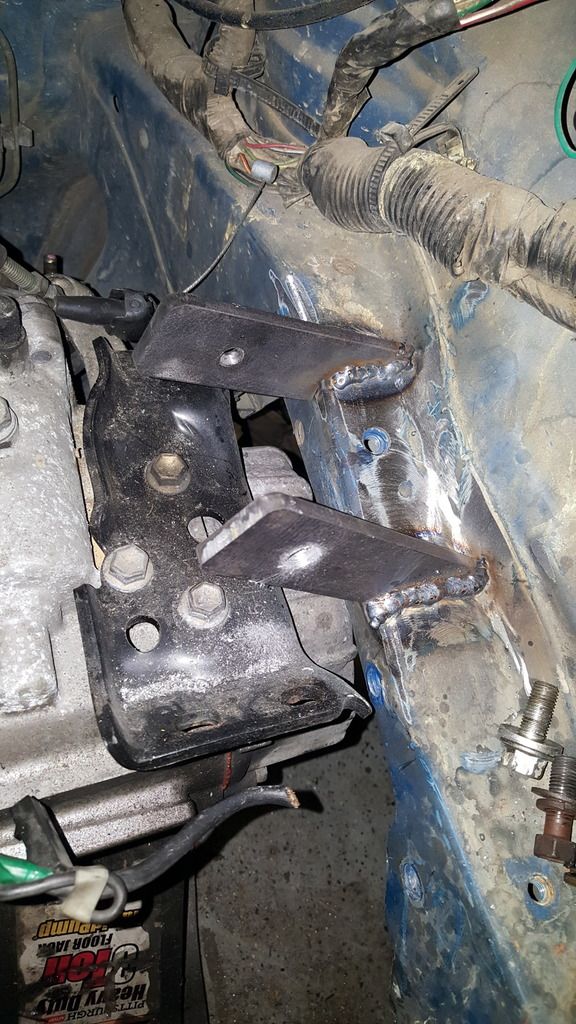

Pretty much got everything mocked up. Motor mount has been reinforced (forgot to take a picture). Radiator is pretty much ready, just need one hose to complete it and get a new overflow tank. Oil cooler location has been established (the blue thing). Location of the battery has also been established, just need the tray and install. Need to find a spot for the clutch master cylinder, because the swift never had one. Gonna plug up a few vacuum lines, throw on a filter for the crankcase vent, another filter for the Idle air control. Once all the hoses are connected the harness is going back in. My friend will also be making a rear torque mount, so engine movement should be very minimal. Lastly, my friend will be making the exhaust.

All around, the engine bay is going to be really clean and easy to work on. If the motor and trans has to come out, we can easily drop it since it doesn't have a sub frame.

Hopefully we'll have it on the road by next week or the week after.
